KNC-PKS-FD134S-06-60S-MBK-DSU

KNC-PKS-FD134S-06-60S-MBK-DSU

KNC-PKS-FD134S-06-60S-AAK-DSH

KNC-PKS-FD134S-06-60S-AAK-DSH

KNC-PKS-FD134S-06-60S-ABK-DSH

1pc Price:
$890.00
Quantity Discount
  • Buy 10 for $870.09 each and save 2%
  • Buy 25 for $837.82 each and save 6%
  • Buy 50 for $775.14 each and save 13%
  • Buy 100 for $739.84 each and save 17%
Inventory:
More Information
Rated Voltage 24-70 VDC
Rated Speed (RPM) 3000
Rated Torque (oz-in) 270
Rated Current (Arms) 16.5
Inertia (oz-in-sec2) 0.00576
Torque Constant KT (oz-in/A) 17.5
Resistance (ohms) 0.12
Inductance (mH) 0.4
Brake (24VDC) Yes
Motor Length (mm) 167.5
Shaft Diameter (mm) 14
Interested in large quantity discount?

Product Information

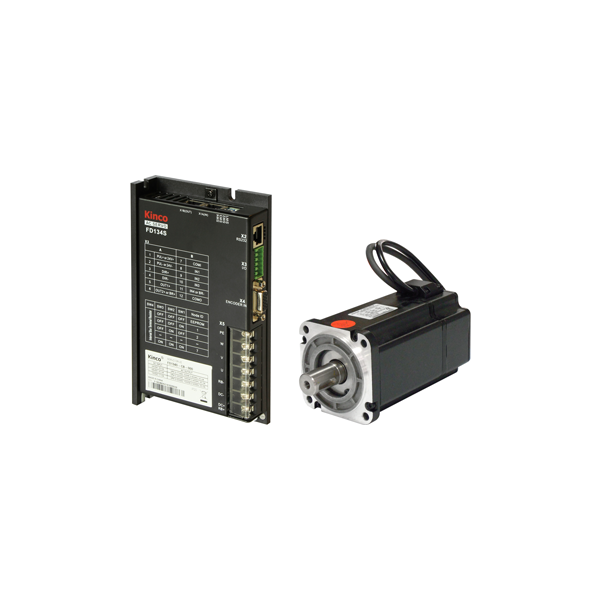

The KNC-PKS-FD134S-06-60S-ABK-DSH Servo System includes a 600 Watt Servo Motor with brake, KNC-SRV-SMC60S-0060-30ABK-5DSH, operated by the KNC-SRV-FD134S-LB-000 Servo Drive. These packages provide easy start-up, convenience, and high performance. The KNC-SRV-SMC60S-0060-30ABK-5DSH motor provides torque up to 270 oz-in. The KNC-SRV-FD134S-LB-000 Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. This system also includes a 5m Motor Power Cable, 5m Brake Cable, 5m Encoder Cable, and a Communication cable.

  • 24-70VDC
  • Rated Torque of 270 oz-in
  • Power Ratings up to 600 Watts
  • Maximum Speed of 3500 RPM
  • Magnetoelectric Encoder (DSU) or 2500 PPR Incremental Encoder (DSH)
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Available
  • Position, Speed, and Torque Control

User Manual (PDF)

Spec Sheet (PDF)

Software Download
