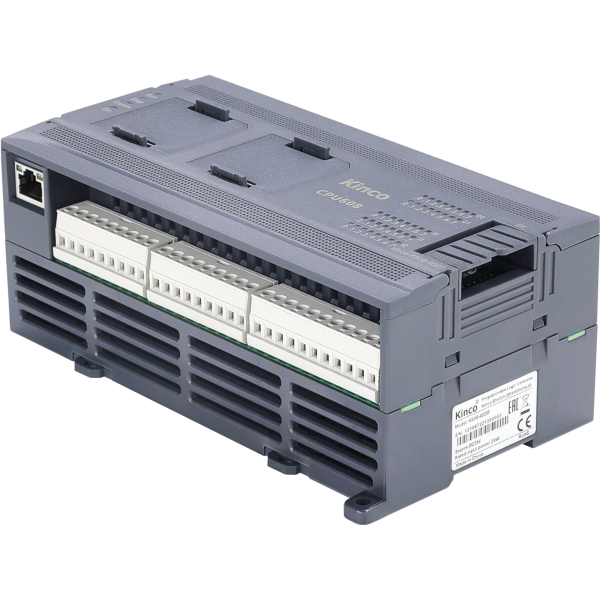

KNC-PLC-K608-40AR
| Module Type | CPU |
|---|---|
| Input Points | 24 |
| Input Type | Sinking or Sourcing |
| Output Points | 16 |
| Output Type | Relay |
| Rated Voltage | 100-240 VAC |
| Analog Input | N/A |
| Analog Output | N/A |
| COM Ports | 2xRS485, Ethernet |
Interested in large quantity discount?
Product Information
The Kinco K6 series provides many diverse functions and is a cost-effective micro integrated PLC. The K6 CPU provides special I/O functions, CANopen master, multiple RS485 ports, high speed counter inputs and PTO/PWM outputs and so on. Equipped with diverse extension modules, the K6 PLCs are equipped to meet requirements of most process control applications. Kinco-K6 seamlessly integrates with the Green series HMIs, CD/FD/JD servo drives and CV/FV VFD’s to provide users with easy automation solutions. CPU modules are integrated with a certain number of I/O points onboard. If the onboard I/O points are not enough, users can connect up to 14 expansion modules offering up to 136 I/O points, which will meet most automation demands.
- Four High-Speed Counters
- Four Pulse Train/PWM Outputs
- 24 Sinking or Sourcing Inputs
- 16 Outputs
- Two RS485 Ports + One Ethernet Port
- Supports Modbus TCP Protocol
- 10 Relay or Transistor Outputs
- Communicate with up to 32 Devices
- Up to 14 Expansion Modules
