KNC-SRV-FD412S-LA-000

KNC-SRV-FD412S-LA-000

KNC-SRV-FD412S-CA-000

KNC-SRV-FD412S-CA-000

KNC-SRV-FD412S-AA-000

1pc Price:
$424.00
Quantity Discount
  • Buy 10 for $407.30 each and save 4%
  • Buy 25 for $397.80 each and save 6%
  • Buy 50 for $355.93 each and save 16%
  • Buy 100 for $348.06 each and save 18%
Inventory:
2
More Information
Rated Power (Watts) 50-200
Rated Voltage 176-253 VAC
Drive Control Capabilities Position, Speed, Torque
COMM CANopen with digital interpolation
I/O Signals 7 Inputs, 5 Outputs
Interested in large quantity discount?

Product Information

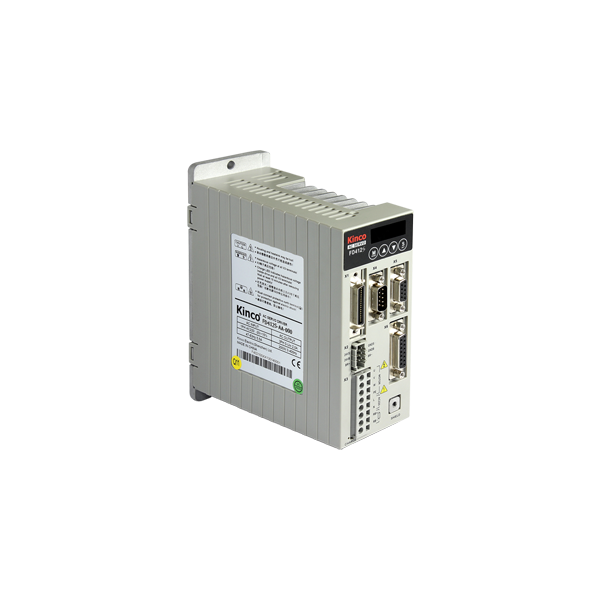

The KNC-SRV-FD412S Series Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The 2S version Servo Driver supports motors with higher resolution encoders: 16-bit multi turn encoder, 17-bit single turn encoder, 20-bit single turn encoder, 17-bit mechanical encoder, and 2500 PPR Encoder. The uniqueness of this Servo Drive is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 50-200W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The KNC-SRV-FD412S Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The KNC-SRV-FD412S Series Servo Drive operates with Single Phase 176-253 VAC Input. These drives come standard with an RS232; RS485 or CANopen communication port and can be operated using MODBUS Protocols or the free, Easy-to-Use Software. Please consult our Application Engineers for more information.

Note:Our KNC-SRV-FD412S-AA-000 servo drives have been discontinued and are now LTSOH (Limited to Stock on Hand).

  • 220VAC Single Phase Input
  • 50-200 Watt Power Range
  • Position, Speed, and Torque Control
  • Communication Ports: RS232, RS485 and CANopen
  • Communication Protocol: MODBUS
  • Supports Motors with High-Resolution Encoders
  • Communication Software
    • Configure Parameters
    • I/O Signal Monitoring
    • Speed and Position Curves
    • Gain Adjustments
  • Programmable Inputs and Outputs
    • 7 Inputs
    • 4 Outputs
  • 2 Analog Inputs
  • CAN BUS Port and CANopen Optional
  • CE Certified

.STEP File (.RAR File)

User Manual (PDF)

Spec Sheet (PDF)

Software Download

Getting Started
