KNC-SRV-SMC60S-0040-30MAK-3DSU

KNC-SRV-SMC60S-0040-30MAK-3DSU

KNC-SRV-SMC60S-0040-30AAK-3LKH

KNC-SRV-SMC60S-0040-30AAK-3LKH

KNC-SRV-SMC60S-0040-30MBK-3DSU

1pc Price:
$291.00
Quantity Discount
  • Buy 10 for $287.69 each and save 1%
  • Buy 25 for $275.88 each and save 5%
  • Buy 50 for $238.25 each and save 18%
  • Buy 100 for $234.89 each and save 19%
Inventory:
More Information
Rated Torque (oz-in) 180
Rated Power (Watts) 400
Rated Speed (RPM) 3000
Max Speed (rpm) 3500
Rated Current (Arms) 10.1
Voltage 24-70 VDC
Brake Yes
Inertia (oz-in-sec2) 0.00579
Torque Constant KT (oz-in/A) 18.7
Resistance (ohms) 0.33
Inductance (mH) 0.68
Length (mm) 147
Weight (lbs) 4.62
Interested in large quantity discount?

Product Information

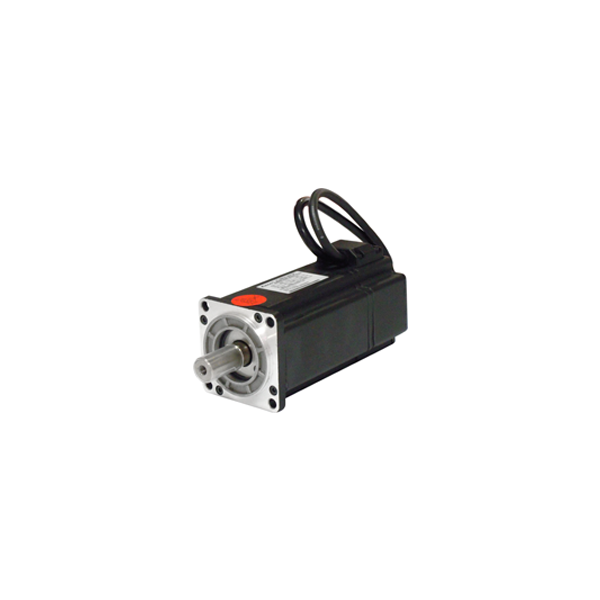

KNC-SRV-SMC60S-0040-30MBK-3DSU Servo Motors offer a low-cost solution for motion control applications requiring position and speed control. These motors are available in a 60mm square flange size and are equipped with a brake. A 16-bit single-turn Magnetic Encoder allows for better cushioning ability and a higher cost-performance ratio. These Servo Motors have Insulation Class F, which is the highest Insulation Class available. They operate quietly, with high reliability and stability even in high-temperature environments. The KNC-SRV-SMC60S-0040-30MBK-3DSU boasts peak torque values up to 540 oz-in, provides excellent dynamic response, allows for 3 times the overload capacity, and has a rated torque of 180 oz-in.

  • 24-70VDC Servo Motor with Brake
  • 400W Power Rating
  • Rated Torque of 180 oz-in
  • Rated Speed of 3000 RPM
  • Maximum Speed of 3500 RPM
  • Magnetic Encoder
  • IP65 Body, IP54 Shaft Seal
  • CE Certified
