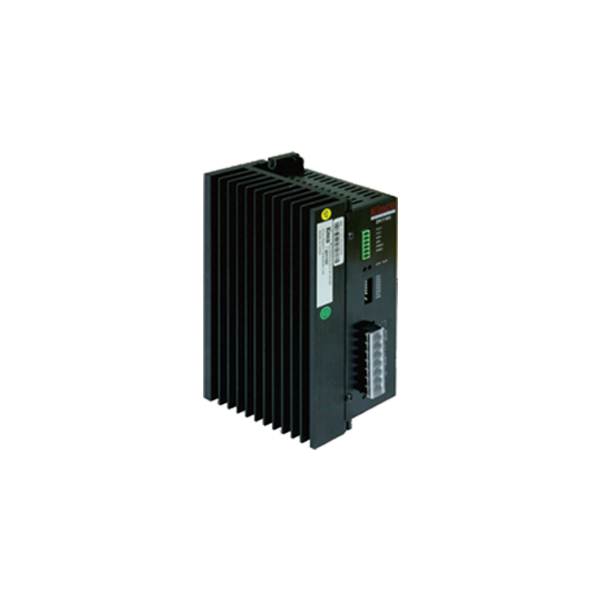

KNC-STP-2H1160
| Current Range (A) | 2.5 - 6.5 |
|---|---|
| Voltage Requirement | 60 - 123 VAC |
| Steps per Revolution | 400 |
Interested in large quantity discount?
Product Information
The 2H1160 Series Stepper Driver provides improved dynamic drive performance. This series drive accepts 60~123VAC input, with up to 6.5 Amps per phase, and provides users with a step resolution of up to 400 steps per revolution. As an additional feature, this drive provides users with the ability to select an auto reduce current setting which helps reduce power consumption and motor heat, which improves motor lifetime. Also, the isolation inputs help minimize interference from external electrical equipment as well as improving performance.
- Supply Voltage: 60 - 123 VAC
- Phase Current (Peak) 2.5 ~ 6.5A (Peak)
- Micro Step Set by Kinco Step Software
- Suitable Motor: 2-Phase Hybrid Stepper Motor
- Operating Temperature -10°C to +45°C
- Weight 1.77Kg
- Ingress Protection IP20
- Communication: RS232/RS422/RS485
