KNC-STP-2M1180N
| Current Range (A) | 4.5 - 8.0 |
|---|---|
| Voltage Requirement | 77 - 123 VAC |
| Steps per Revolution | 200 - 25,600 |
Interested in large quantity discount?
Product Information

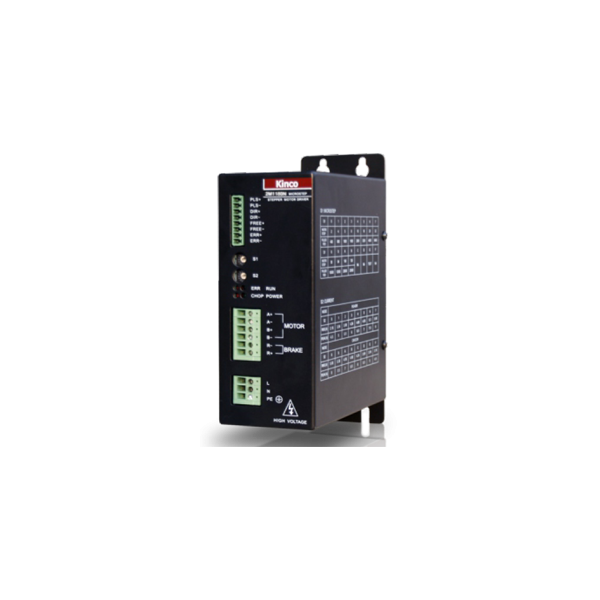

The 2M1180N Stepper Driver provides improved dynamic drive performance. This series drive accepts 77~123VAC input, with up to 8 Amps per phase, and provides users with a step resolution of up to 25,600 steps per revolution. As an additional feature, this drive provides users with the ability to select an auto reduce current setting which helps reduce power consumption and motor heat, while improving motor lifetime. Also, the isolation inputs help minimize interference from external electrical equipment as well as improving performance.
- Supply Voltage: 77 - 123VAC (50Hz/60Hz)
- Over-Voltage Protection 187VDC
- Under-Voltage Protection 90VDC
- Cooling Method: Fan Cooling
- Operating Temperature 0°C to +40°C
- Storage Temperature -20°C to +70°C
- Ingress Protection IP20
