KNC-STP-FM860-AA-000
| Current Range (A) | 0 - 6.0 |
|---|---|
| Voltage Requirement | 24 - 70 VDC |
| Steps per Revolution | 200 - 51,200 |
Interested in large quantity discount?
Product Information

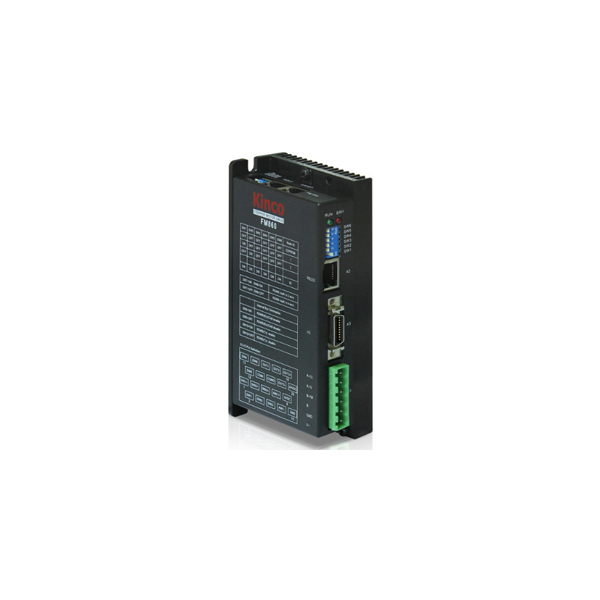

The FM860 Series Stepper Driver provides improved dynamic drive performance. This series drive accepts 24~70VDC input, with up to 6 Amps per phase, and provides users the ability to set up the step resolution set by KincoStep Software. As an additional feature, this drive provides users with the ability to select an auto reduce current setting which helps reduce power consumption and motor heat, while improving motor lifetime. Also, the isolation inputs help minimize interference from external electrical equipment as well has improving performance.
- Input Voltage 24 ~70VDC
- Over-Voltage Protection 90V
- Under-Voltage Protection 15V
- Natural Air Cooling
- Operating Temperature 0°C ~ 40°C
- Operating Humidity: 85% RH (No Condensation or Water Drops)
- Weight 0.36Kg
- Ingress Protection IP20
- RS785 or CAN Bus Interface
