KNC-VFD-KC100-4T | Anaheim Automation, Inc.

The KNC-VFD-KC100 series is a high performance vector inverter that has a narrow rectangle design, crimping terminal and independent air duct design. The air duct design has benefits such as convenient installation, easy wiring, tremendous heat dissipation, top of the line performance and comprehensive protection. The KNC-VFD-KC100 series is a complete system, process oriented and strict in the development process of software, hardware, and structure, with attention to detail and the user experience. These VFD’s can be used in sewage treatment, manufacturing production lines, fan ventilation systems, logistics and transportation, air conditioner cooling systems, wood working machinery, and various automated production equipment.

Slim 65mm Body
Three-Phase 380V/750-5500W
Input/Output Terminals Without Tightening Screws
European Crimping Terminal

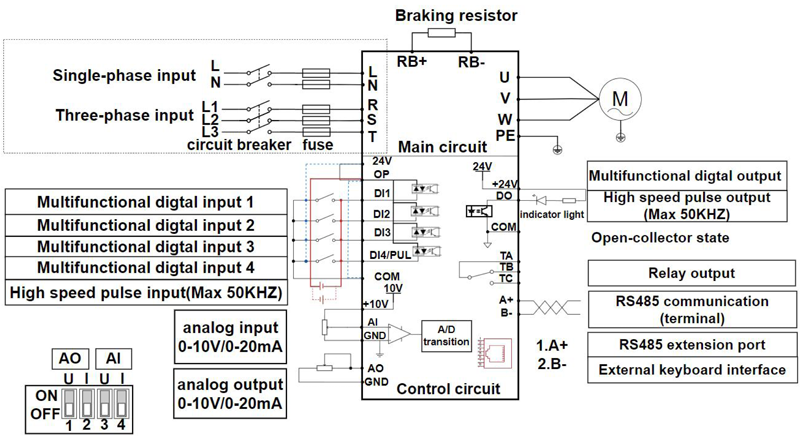

4 Digital Inputs & 1 Digital Output
1 Analog Input & 1 Analog Output
1 Relay Output

Item	Input Voltage	Rated Power (HP)	Rated Current (A)	Installation Type	IP Rating	Cooling Method	CE Certified	Lead Time	1pc Price (USD)	Add to Cart
Sort by Name KNC-VFD-KC100-4T-05R5G	Input Voltage Three-Phase, 380-480VAC	Rated Power (HP) 7	Rated Current (A) 14.5	Installation Type Wall-Mount	IP Rating IP20	Cooling Method Fan	CE Certified Yes	Lead Time Typ 28 Days	N/A	Call Us Contact Us
Sort by Name KNC-VFD-KC100-4T-03R7G	Input Voltage Three-Phase, 380-480VAC	Rated Power (HP) 5	Rated Current (A) 10.5	Installation Type Wall-Mount	IP Rating IP20	Cooling Method Fan	CE Certified Yes	Lead Time Typ 28 Days	N/A	Call Us Contact Us
Sort by Name KNC-VFD-KC100-4T-02R2G	Input Voltage Three-Phase, 380-480VAC	Rated Power (HP) 3	Rated Current (A) 5.8	Installation Type Wall-Mount	IP Rating IP20	Cooling Method Fan	CE Certified Yes	Lead Time Typ 28 Days	N/A	Call Us Contact Us
Sort by Name KNC-VFD-KC100-4T-0R75G	Input Voltage Three-Phase, 380-480VAC	Rated Power (HP) 1	Rated Current (A) 3.4	Installation Type Wall-Mount	IP Rating IP20	Cooling Method Fan	CE Certified Yes	Lead Time Typ 28 Days	N/A	Call Us Contact Us
Sort by Name KNC-VFD-KC100-4T-01R5G	Input Voltage Three-Phase, 380-480VAC	Rated Power (HP) 2	Rated Current (A) 5	Installation Type Wall-Mount	IP Rating IP20	Cooling Method Fan	CE Certified Yes	Lead Time Typ 28 Days	N/A	Call Us Contact Us
