LRM17 | Anaheim Automation, Inc.

Information

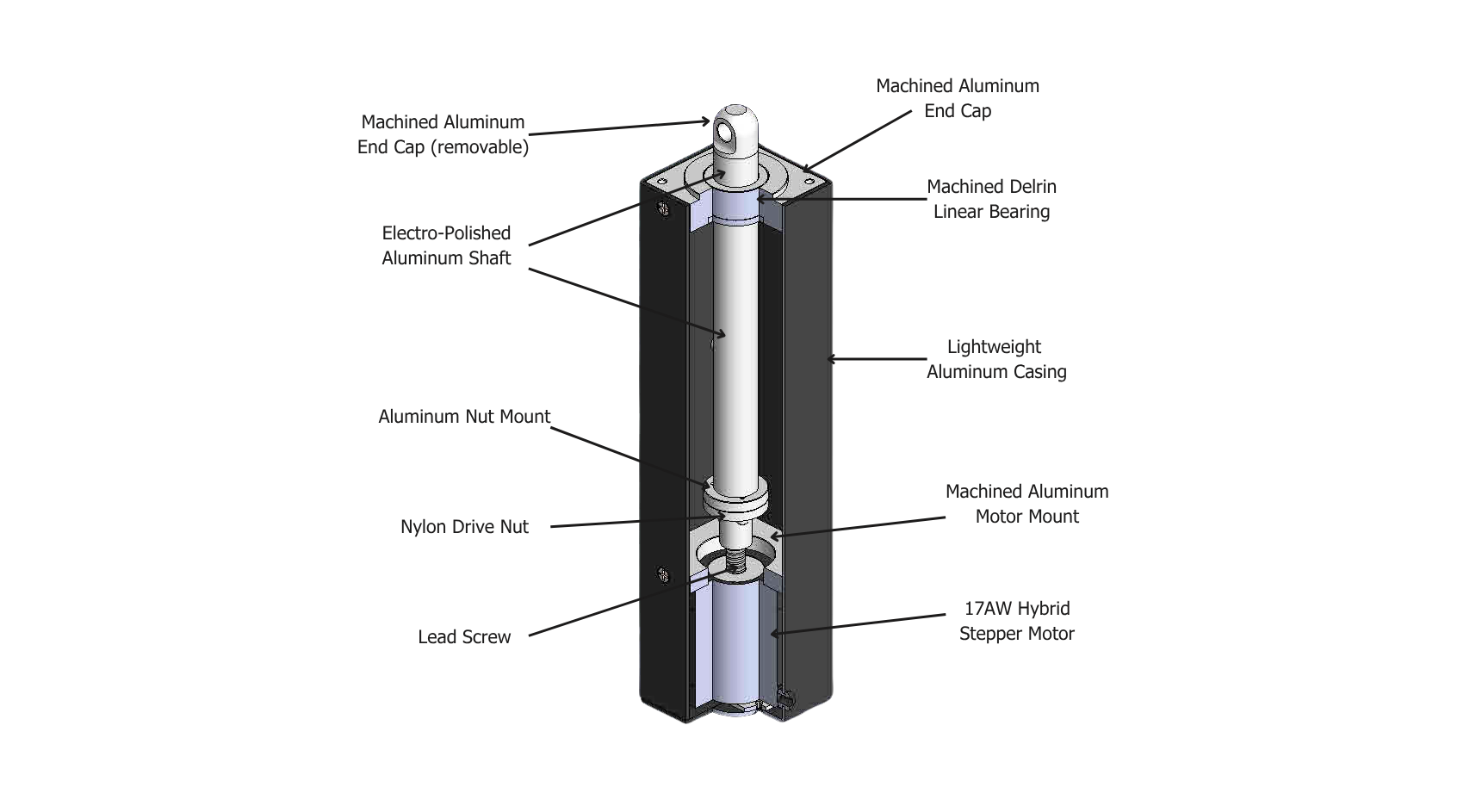

The LRM17 Series is a Precision Rod Actuator with a maximum load capacity of 170Lbs. This rod actuator is powered by a linear step motor, boasts speeds up to 2in/s, and the stroke lengths up to 12in.

  • 49mm Square
  • Push Pull Actuator
  • Max Load up to 170lb
  • 1.8° Step Angle
  • Stroke Length up to 12in
  • Multiple Lead Screw Options
Item Stroke Length (in) Set Descending Direction Max Speed (in/sec) Travel Per Step (mm) Screw Lead (in) Load Capacity (lbs) Price (USD) Add to Cart
Sort by Name LRM17-06-102C Stroke Length (in) Set Descending Direction 6 Max Speed (in/sec) 2 Travel Per Step (mm) 0.00125 Screw Lead (in) 0.25 Load Capacity (lbs) 28 N/A Call Us
Sort by Name LRM17-06-102P Stroke Length (in) Set Descending Direction 6 Max Speed (in/sec) 0.2 Travel Per Step (mm) 0.000156 Screw Lead (in) 0.03125 Load Capacity (lbs) 170 N/A Call Us
Sort by Name LRM17-06-302C Stroke Length (in) Set Descending Direction 6 Max Speed (in/sec) 2 Travel Per Step (mm) 0.00125 Screw Lead (in) 0.25 Load Capacity (lbs) 28 N/A Call Us
Sort by Name LRM17-06-302P Stroke Length (in) Set Descending Direction 6 Max Speed (in/sec) 0.2 Travel Per Step (mm) 0.000156 Screw Lead (in) 0.03125 Load Capacity (lbs) 170 N/A Call Us
Sort by Name LRM17-12-102C Stroke Length (in) Set Descending Direction 12 Max Speed (in/sec) 2 Travel Per Step (mm) 0.00125 Screw Lead (in) 0.25 Load Capacity (lbs) 28 N/A Call Us
Sort by Name LRM17-12-102P Stroke Length (in) Set Descending Direction 12 Max Speed (in/sec) 0.2 Travel Per Step (mm) 0.000156 Screw Lead (in) 0.03125 Load Capacity (lbs) 170 N/A Call Us
Sort by Name LRM17-12-302C Stroke Length (in) Set Descending Direction 12 Max Speed (in/sec) 2 Travel Per Step (mm) 0.00125 Screw Lead (in) 0.25 Load Capacity (lbs) 28 N/A Call Us
Sort by Name LRM17-12-302P Stroke Length (in) Set Descending Direction 12 Max Speed (in/sec) 0.2 Travel Per Step (mm) 0.000156 Screw Lead (in) 0.03125 Load Capacity (lbs) 170 N/A Call Us
