High-Performance Motion Control: When Servo Solutions are the Ideal Choice for OEMs and Design Engineers
High-Performance Motion Control: When Servo Solutions are the Ideal Choice for OEMs and Design Engineers
Jun 2026 Nicole Jones
When you are designing next-generation machinery or scaling an OEM production line, your choice of motion control architecture dictates everything. System throughput, precision, and long-term reliability hang in the balance. When your application demands high torque at low speeds, lightning-fast dynamic responses, and absolute closed-loop tracking, standard Stepper or Brushless DC motors simply won't cut it.
That's where Anaheim Automation's Servo Solutions come in. In exclusive partnership with Kinco Automation, we deliver a world-class, industrial-grade lineup of Servo Motors, Servo Drives, and Integrated & Packaged Servo Systems. These solutions are engineered specifically to tackle your most complex automation challenges, slash your engineering lead times, and maximize your system's ROI.
Inside the Lineup: High-Performance Hardware Engineered to Deliver
Anaheim Automation's comprehensive servo ecosystem is built for maximum versatility and seamless integration. Whether you need a stadalone component or a plug-and-play Packaged System, we have you covered.

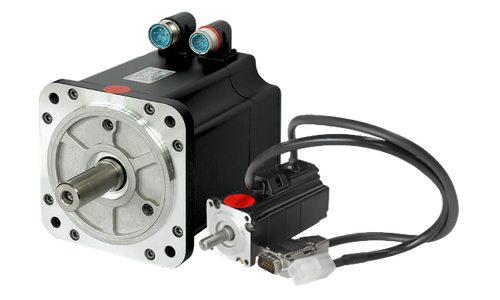

1. High-Density Servo Motors: Rugged, Precise, and Powerful
Our permanent magnet synchronous (PMSM) motors feature a precision star-winding configuration. This design accepts pure sinusoidal currents to deliver exceptionally smooth commutation and virtually eliminate torque ripple.
- Unmatched Power Density: Frame sizes range from a compact 40mm square up to a heavy-duty 180mm square, spanning a power spectrum from 50W to 5,000W.
- Massive Overload Capacity: Capable of generating up to 5,438 oz-in of rated torque, these motors boast an intermittent peak capacity up to 300% of their rated limits to power through sudden load changes. Rated base speeds of 2,000 or 3,000 RPM can accelerate up to 6,500 RPM on smaller frames.
- Advanced Feedback Options: Ditch the hassle of complex homing routines. Choose from high-resolution feedback options including 2,500 PPR incremental optical rotary encoders, 16-bit single-turn magnetic sensors, 16-bit multi-turn absolute rotary encoders, or ultra-robust magnetoelectric variations.
- Built for Extreme Environments: Armed with industrial enclosures rated at IP65 for the body (IP54 shaft seal) and Class F insulation, these motors are built to last. Plus, standard spring-applied electromagnetic friction brakes are available across multiple series to keep your loads safely immobilized during power loss.

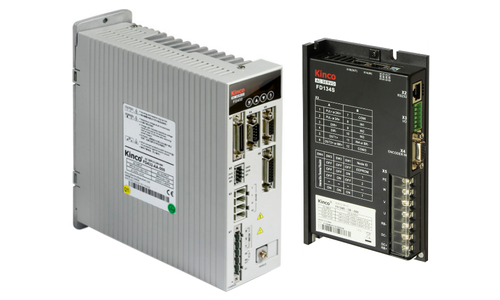

2. Intelligent AC and DC Servo Drives: Smart Control at Your Fingertips
Leveraging high-speed digital signal processing (DSP) alongside auto-disturbance rejection and speed observation control algorithms, these drives completely eliminate mechanical latency.
- Kinco DC Servo Drives (FD1x4S Series): Rated for 50W to 1,500W outputs with a 24 to 70 VDC input range, they provide rock-solid, low-voltage stability perfect for battery-powered or mobile applications.
- Kinco AC Servo Drives (FD3x2S and FD4x2S Series): Powering 50W to 2,000W applications with single-phase 88 to 126 VAC or single/three-phase 176 to 253 VAC inputs, these drives flawlessly handle premium 17-bit and 20-bit high-resolution encoder protocols.
- Dynamic, Adaptable Control: Seamlessly switch on the fly between Position Control (via external puls-and-direction, CW/CCW, or A/B quadrature signals), Speed Control, and Torque Control. Plus, the drives natively support up to 8 internal position and speed setpoints.
- Seamless Factory Integration: Enjoy native support for Modbus RTU (via an RS485 interface covering up to 4,000 feet and 31 axes), CANopen, and ultra-fast EtherCAT networks.
- Bulletproof Electronic Protection: Built-in safeguards protect your investment with over-voltage, under-voltage, short-circuit, drive over-temperature, and motor I²t thermal overload tracking.

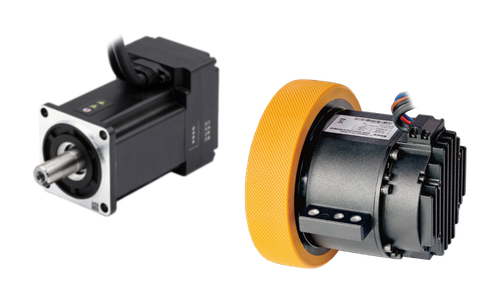

3. Packaged and Integrated Servo Systems: Simplify and Save
Why waste hours dealing with component matching and cable management? Anaheim Automation offers streamlined, precision-engineered solutions to save you time and money.
- Integrated Servo Motors (MD and ISMK Series): With the motor, encoder, and drive merged into one compact unit, these systems eliminate the headaches of motor-to-drive wiring. Spanning 100W to 750W, they only require main power and basic I/O wiring to run.
- iWMC Integrated Servo Wheels: The ultimate direct-drive solution for mobile robots and automated guided vehicles (AGVs), this compact, space-saving powerhouse combines a 104mm motor frame, drive electronics, absolute encoder, and wheel into one module that supports massive payloads up to 1,000kg across two wheels.
- Packaged Systems (PKS-FD and PKS-PRO-E Series): Get to market faster with a perfectly pre-matched motor and drive pairing that includes optimized, shielded 5-meter power and encoder cables straight out of the box.
Market-Proven Performance Across Key Industries
Our servo solutions are the go-to choice for designers and integrators looking to elevate machinery performance across premium sectors.
The Competitve Edge: When Servos Outshine Steppers
If you are currently debating whether to choose an open-loop stepper system or a closed-loop servo system for your project, look at the bottom-line advantages that servos can offer:
- Drastically Lower Utility and Thermal Costs: Steppers draw full rated current constantly, wasting energy and generating heat. Anaheim Automation's servo motors pull power proportionally to the mechanical load, keeping your machine running coolly and efficiently.
- Unrivaled High-Speed Output: While stepper torque drops off exponentially as speed increases, our servos maintain up to 90% of their usable torque across their entire high-RPM operational range.
- Intelligent Error Correction: Thanks to negative feedback loops, if your machine hits a temporaty physical obstruction, the drive instantly senses the deviation and amplifies torque to correct it on the fly, completly eliminating missed steps.
- Ultra-Smooth, Resonance-Free Motion: Say goodbye to noisy, shaking machinery. Sinusoidal commutation guarantees a quiet, smooth user experience across all speeds.
Streamlined Implementation Tools
Anaheim Automation doesn't stop at providing world-class hardware; we also give you the software tools you need to succeed. Every drive line is supported by the Kinco Servo+ Communication Software, available as a free download. With a built-in EASY TUNE auto-tuning algorithm and an active real-time oscilloscope, optimizing your PID loops for crisp, stable positioning takes just minutes.
Additionally, we proudly offer comprehensive custom options for large-scale OEM requirements. From simple shaft modifications, specialized wire colors, and unique label designs to custom torque/voltage specifications, Anaheim Automation can help you build your ideal solution.
FAQs
What is the main performance advantage of choosing a servo system over a stepper system?
- High-Speed Torque: Servos maintain up to 90% of their rated torque at high RPMs, whereas stepper torque drops off exponentially as speed increases.
- Closed-Loop Reliability: Thanks to continuous encoder feedback, the system automatically detects and corrects for positional errors, entirely eliminating missed steps and stalling.
- Efficiency: Servos draw power dynamically based on the exact mechanical load required, running significantly cooler and consuming less energy than full-current steppers.
Do I need to manually tune the PID loops for these servo systems?
- Easy Setup: No, you do not have to start from scratch. Every drive is supported by the free Kinco Servo+ Software, which features a powerful EASY TUNE auto-tuning algorithm.
- Precision Tweaking: The software includes a real-time digital oscilloscope, allowing design engineers to easily optimize and stabilize loops for complex mechanical loads in just a few minutes.
What communication protocols do these servo drives support?
- Industrial Networking: Our intelligent AC and DC servo drives offer native support for Modbus RTU (via an RS485 interface supporting up to 31 axes), CANopen, and ultra-fast EtherCAT networks.
- Seamless Integration: This wide range ensures plug-and-play compatibility with nearly all standard PLCs, industrial PCs, and master controllers on the market.
When should I choose an Integrated Servo System over standalone components?
- Space Limitations: Choose our MD or iSMK Servo Motors with Integrated Drives when control cabinet space is tight. These components combine the motor, encoder, and drive into one single housing.
- Reduced Labor: These integrated units only require main power and basic I/O wiring, eliminating hours of component matching, crimping, and routing complex motor-to-drive cables.
- EMI Prevention: Keeping the high-frequency drive signals localized inside the motor housing drastically reduces electromagnetic interference across your machine chassis.
Can Anaheim Automation customize these servo products for specialized OEM requirements?
- Tailored Engineering: Yes, we specialize in custom solutions for large-scale OEM production runs.
- Available Modifications: We can accommodate shaft modifications, specialized wire colors/harnesses, custom voltage ratings, unique label layouts, and special mounting flanges to match your exact requirements.
