Permanent Magnet (PM) Brush DC Motors with Spur Gearboxes

Permanent Magnet (PM) Brush DC Motors with Spur Gearboxes | Anaheim Automation, Inc.

Information

Anaheim Automation's robust Permanent Magnet (PM) Brush DC Spur Gearmotors combine a brushed DC motor and a spur gearbox into a single streamlined package. Available in frame sizes from 24mm to 83mm, and with gear ratio options from 3:1 to 3,000:1, these gearmotors are capable of producing continuous torque of up to 19,026 oz-in.

  • Input Voltage: 6 - 24VDC
  • Sizes: 24mm - 83mm
  • Continuous Torque: Up to 2,750 oz-in
  • Speed: Up to 1,000 RPM
  • Gear Ratio Options: 3:1 - 3,000:1
  • Custom Designs Available

Featured Series

BDSG-24-30
  • Body Diameter: 24mm
  • Nominal Voltage: 12V
  • No Load Speed: 12-500 RPM
  • Multiple Gear Ratio Options
  • Up to 41.66 oz-in Rated Torque
  • Up to 83.32 oz-in Peak Torque
  • Designed for High-Volume Applications
  • Custom Versions Available
  • RoHS Compliant
BDSG-27-20
  • Body Diameter: 27 mm
  • Nominal Voltage: 12 V
  • No Load Speed: 11-473 RPM
  • Multiple Gear Ratio Options
  • Up to 15.55 oz-in Rated Torque
  • Up to 83.32 oz-in Peak Torque
  • Designed for High-Volume Applications
  • Custom Versions Available
  • RoHS Compliant
BDSG-37-24
  • Body Diameter: 37mm
  • Nominal Voltage: 6V, 12V, or 24V
  • No Load Speed: 3-500 RPM
  • Multiple Gear Ratio Options
  • Up to 83 oz-in Rated Torque
  • Up to 250 oz-in Peak Torque
  • Motor Length: 24mm
  • Rated Power: 0.56-0.59W
  • Designed for High-Volume Applications
  • Custom Versions Available
  • RoHS Compliant
BDSG-37-30
  • Body Diameter: 37mm
  • Nominal Voltage: 12 or 24V
  • No Load Speed: 2-500 RPM
  • Multiple Gear Ratio Options
  • Up to 83 oz-in Rated Torque
  • Up to 250 oz-in Peak Torque
  • Motor Length: 30mm
  • Rated Power: 1.8-2.1W
  • Designed for High-Volume Applications
  • Custom Versions Available
  • RoHS Compliant
BDSG-37-40
  • Body Diameter: 37mm
  • Nominal Voltage: 6, 12, or 24V
  • No Load Speed: 16-833 RPM
  • Multiple Gear Ratio Options
  • Up to 83 oz-in Rated Torque
  • Up to 250 oz-in Peak Torque
  • Motor Length: 40mm
  • Rated Power: 4.2W
  • Designed for High-Volume Applications
  • Custom Versions Available
  • RoHS Compliant
BDSG-37-57
  • Body Diameter: 37mm
  • Nominal Voltage: 12 or 24V
  • No Load Speed: 42-700 RPM
  • Multiple Gear Ratio Options
  • Up to 83 oz-in Rated Torque
  • Up to 166 oz-in Peak Torque
  • Motor Length: 57mm
  • Rated Power: 7.0W
  • Designed for High-Volume Applications
  • Custom Versions Available
  • RoHS Compliant
BDSG-60-105
  • Body Diameter: 60 mm
  • Nominal Voltage: 24 V
  • No Load Speed: 8-417 RPM
  • Multiple Gear Ratio Options
  • Up to 347 oz-in Rated Torque
  • Up to 694 oz-in Peak Torque
  • Designed for High-Volume Applications
  • Custom Versions Available
  • CE and RoHS Compliant
BDSG-60-75
  • Body Diameter: 60 mm
  • Nominal Voltage: 24 V
  • No Load Speed: 20-1000 RPM
  • Multiple Gear Ratio Options
  • Up to 275 oz-in Rated Torque
  • Up to 1389 oz-in Peak Torque
  • Designed for High-Volume Applications
  • Custom Versions Available
  • CE and RoHS Compliant
BDSG-71-110
  • Body Diameter: 71mm
  • Nominal Voltage: 24V
  • No Load Speed: 40-1000 RPM
  • Multiple Gear Ratio Options
  • Up to 1389 oz-in Rated Torque
  • Up to 2777 oz-in Peak Torque
  • Designed for High-Volume Applications
  • Custom Versions Available
  • CE Certified and RoHS Compliant

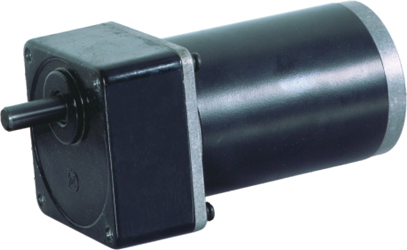

BDSG-80-115
  • Body Diameter: 80mm
  • Nominal Voltage: 24V
  • No Load Speed: 27-1000 RPM
  • Multiple Gear Ratio Options
  • Up to 2278 oz-in Rated Torque
  • Up to 3472 oz-in Peak Torque
  • Designed for High-Volume Applications
  • Custom Versions Available
  • RoHS Compliant
BDSG-83-125
  • Body Diameter: 83mm
  • Nominal Voltage: 24V
  • No Load Speed: 30-1000 RPM
  • Multiple Gear Ratio Options
  • Up to 1514 oz-in Rated Torque
  • Up to 3472 oz-in Peak Torque
  • Designed for High-Volume Applications
  • Custom Versions Available
  • CE Certified and RoHS Certified

11 Item(s)

Show per page

Note: All of our PMDC Brushed Spur Gearmotors can be customized to match your maximum speed, torque, and voltage requirements. Custom or modified motor shafts, cabling, wiring, and connectors are also available, along with a wide selection of Accessories and Value-Added Components. For assistance with making a selection, or for a custom application, contact our Customer Service Representatives to discuss your requirements.
