PCL602

PCL602 | Anaheim Automation, Inc.

Information

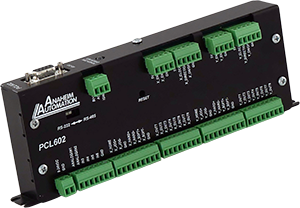

The PCL602 is a dual-axis step motor controller containing 2 Kbytes of nonvolatile stored programming space and quadrature encoder feedback. This device provides flexible and independent control of stepper motors from computers or any machine controller with a RS232/RS485 port. More specifically, the PCL602 presents an easy way to implement motion systems requiring two axes and the precision that can be achieved on each axis through the use of encoder feedback.

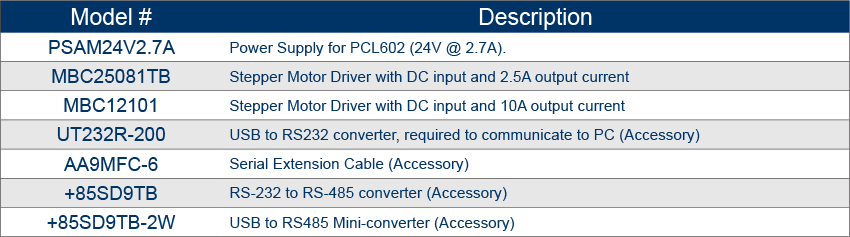

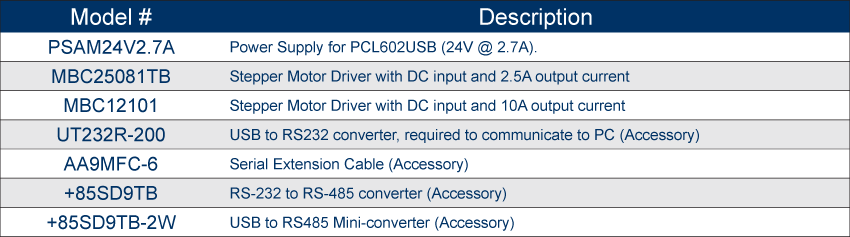

Accessories such as a TWS7 (7 decade thumbwheel switch) and AA9MFC-6 (serial port cable), are purchased separately. See Accessories on this website for details.

  • Cost-Effective Independent Dual-Axis Control
  • Easy to Use Windows Software Included
  • Stored Program Capabilities
  • RS232/RS485 Communication Bus
  • 24V Compatible Inputs
  • 0-5V Analog Input for Speed or Distance
  • 16 programmable outputs
  • Encoder Feedback for each axis
  • Compact and Rugged Construction
Loading...

Additional Information

3D PDF

.STEP File (.RAR File)

User Manual (PDF)

Spec Sheet (PDF)

Software Download
