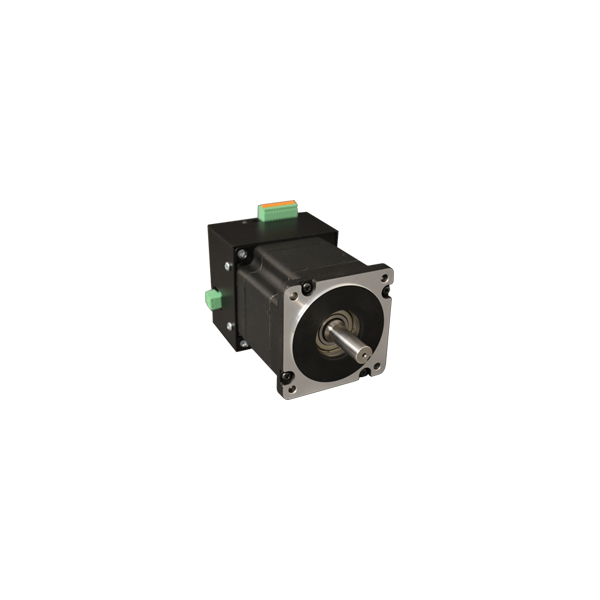

34MDSI314S
| Bipolar Torque (oz-in) | 1700 |
|---|---|
| "L" Length (in) | 8.39 |
| Rotor Inertia (oz-in-sec2) | 0.057 |
| Weight (lbs) | 12.1 |
| Shaft Option | Single |
| Recommended Power Supply | PSEPM-0320-1-48V-6.7A |
| "D" Shaft Diameter (in) | 0.625 |
Interested in large quantity discount?
Product Information
Integrated Stepper Motors include built-in microstep driver electronics, eliminating the need for motor wiring and hookup. The 34MDSI series also contains a simple indexer/controller with RS485 communications. It is available in 3 stack lengths, delivering from 637 to 1700 ounce inches of torque. The bipolar microstep driver features resolution of 2000 steps/revolution, providing smooth rotary operation. The 34MDSI Integrated Stepper Motor is available in either a single-shaft version or a double-shaft version with optional encoder.
- NEMA 34 Stepper Motor with Driver and Controller
- Eliminates Motor Wires
- Upto 1,700 Oz-in Torque
- MicroStep Divisor of 10
- Compact Package
- 20-80V Power Requirement
- RS485 Communications
- TTL Logic or 24V Level Inputs Available
- 0.18° Step Resolution
- Efficient and Durable
- Ideal for Precise Positioning
