512DN8
| NEMA Size | 8 |
|---|---|
| Cycles Per Rev | 512 |
| Index Function | No |
| Type | SingleEnded |
Interested in large quantity discount?
Product Information

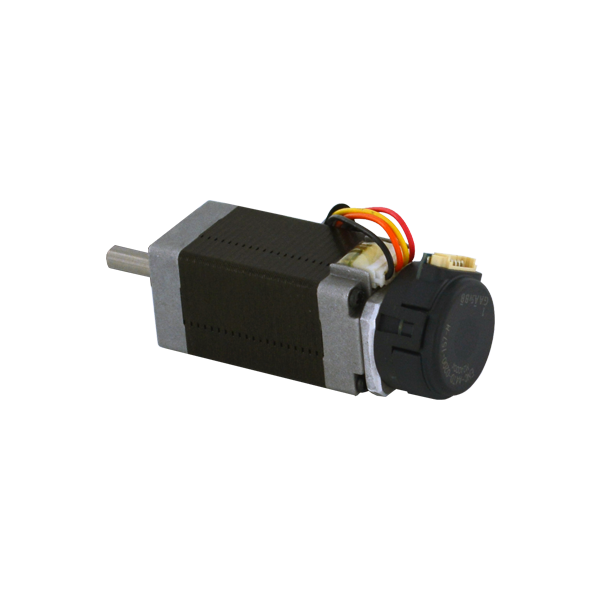

Our Differential Miniature Encoders without an Index channel are transmissive optical encoder modules. These modules are designed to detect rotary position with a codewheel when added to the end of an Anaheim Automation dual shaft 08Y Series motor. These Differential Miniature Encoders consist of a lensed LED source and a monolithic detector IC enclosed in a small polymer package. These modules use phased array detector technology to provide superior performance and greater tolerances over traditional aperture mask type encoders. They provide digital quadrature outputs on all resolutions and are capable of sinking or sourcing 8mA each. These encoders are powered from a single +5VDC power supply. Also, they are RoHS compliant.
The Miniature, Differential Encoder Without Index Series is compatible with Anaheim Automation's 08Y Stepper Motors and BLWRPG17 BLDC Gearmotors.
Add below item number to the end of your motor part number.
Example:
08Y102D-LW4-400DN8
- Miniature Size
- 100 to 1000 Cycles Per Revolution (CPR)
- Tracks from 0 to 30,000 Cycles Per Second
- Off-axis Mounting Tolerance of 0.010"
- 2-Channel Quadrature TTL Squarewave Outputs
- -10° to +85° C Operating Temperature
- Single +5V Supply
- RoHS Compliant
