KNC-PKS-FD114S-005-40S-MBK-DSU

KNC-PKS-FD114S-005-40S-MBK-DSU

KNC-PKS-FD114S-01-40S-MBK-DSU

KNC-PKS-FD114S-01-40S-MBK-DSU

KNC-PKS-FD114S-01-40S-MAK-DSU

1pc Price:
$522.00
Quantity Discount
  • Buy 10 for $511.78 each and save 2%
  • Buy 25 for $496.86 each and save 5%
  • Buy 50 for $471.98 each and save 10%
  • Buy 100 for $453.90 each and save 13%
Inventory:
2
More Information
Rated Voltage 24-70 VDC
Rated Speed (RPM) 3000
Rated Torque (oz-in) 45
Rated Current (Arms) 3.2
Inertia (oz-in-sec2) 0.00047
Torque Constant KT (oz-in/A) 15.6
Resistance (ohms) 1.5
Inductance (mH) 1.9
Brake (24VDC) No
Motor Length (mm) 96.6
Shaft Diameter (mm) 8
Interested in large quantity discount?

Product Information

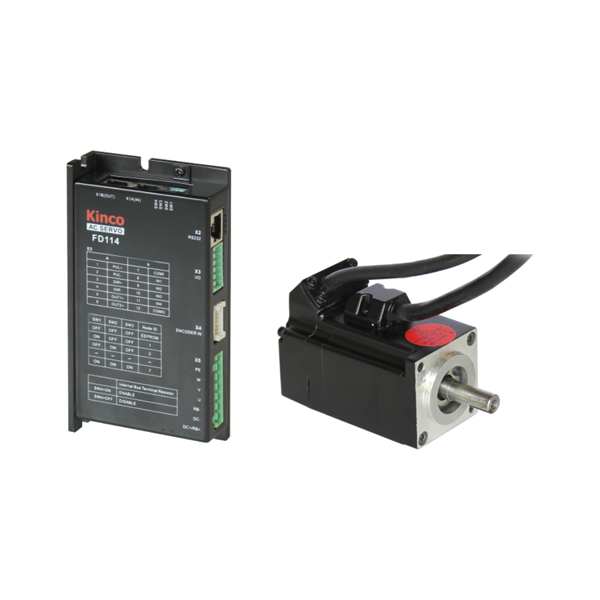

The KNC-PKS-FD114S-01-40S-MAK-DSU Servo System includes a 100 Watt KNC-SRV-SMC40S-0010-30MAK-5DSU Servo Motor operated by the KNC-SRV-FD114S-LB-000 Servo Drive. These packages provide easy start-up, convenience, and performance. The KNC-SRV-SMC40S-0010-30MAK-5DSU motor provides peak torque up to 135 oz-in. The KNC-SRV-FD114S-LB-000 Servo Drive is designed to switch dynamically among different control methods for more flexible operation, and can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. Each system includes a 5m Motor Power Cable, 5m Encoder Cable and a Communication cable.

  • 24-70VDC
  • Rated Torque of 45 oz-in
  • Power Ratings up to 100 Watts
  • 16 Bit Single-Turn Magnetic Encoder
  • Maximum Speed of 3942 RPM
  • IP65 for Body, IP54 Shaft Seal
  • Brake Option Available
  • Position, Speed, and Torque Control
  • RS232 and RS485 Port

User Manual (PDF)

Spec Sheet (PDF)

Software Download
