KNC-PKS-FD114S-005-40S-MBK-DSU
| Rated Voltage | 24-70 VDC |
|---|---|
| Rated Speed (RPM) | 3000 |
| Rated Torque (oz-in) | 23 |
| Rated Current (Arms) | 1.5 |
| Inertia (oz-in-sec2) | 0.0003 |
| Torque Constant KT (oz-in/A) | 15.6 |
| Resistance (ohms) | 4.1 |
| Inductance (mH) | 4.5 |
| Brake (24VDC) | Yes |
| Motor Length (mm) | 104.6 |
| Shaft Diameter (mm) | 8 |
Interested in large quantity discount?
Product Information

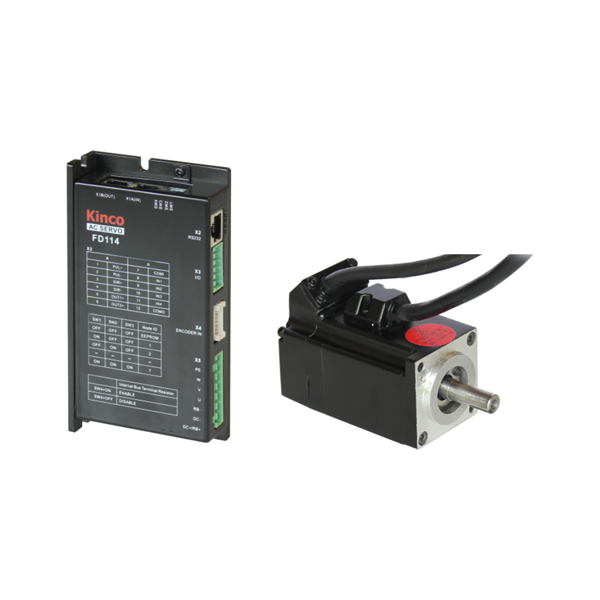

The KNC-PKS-FD114S-005-40S-MBK-DSU Servo System includes a 50 Watt KNC-SRV-SMC40S-0005-30MBK-5DSU Servo Motor with brake, operated by the KNC-SRV-FD114S-LB-000 Servo Drive. These packages provide easy start-up, convenience, and performance. The KNC-SRV-SMC40S-0005-30MBK-5DSU motor provides peak torque up to 68 oz-in. The KNC-SRV-FD114S-LB-000 Servo Drive is designed to switch dynamically among different control methods for more flexible operation and can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. This system includes a 5m Motor Power Cable, 5m Encoder Cable, 5m Brake Cable, and a Communication cable.
- 24-70VDC
- Rated Torque of 23 oz-in
- Power Ratings up to 50 Watts
- 16 Bit Single-Turn Magnetic Encoder
- Maximum Speed of 3942 RPM
- IP65 for Body, IP54 Shaft Seal
- Brake Option Available
- Position, Speed, and Torque Control
- RS232 and RS485 Port
