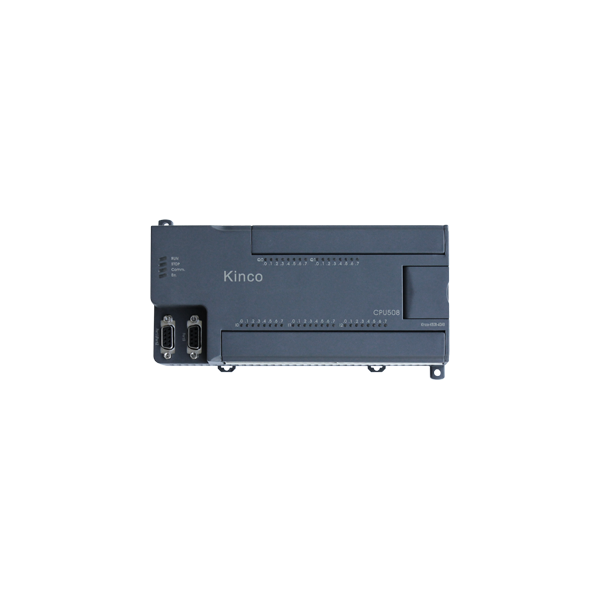

KNC-PLC-K508-40AT
| Module Type | CPU |
|---|---|
| Input Points | 24 |
| Input Type | Sinking or Sourcing |
| Output Points | 16 |
| Output Type | Transistor |
| Rated Voltage | 85-265 VAC |
| Analog Input | N/A |
| Analog Output | N/A |
| COM Ports | Port0: RS232Port1 & Port2: RS485 |
Interested in large quantity discount?
Product Information
NOTE: The KNC-PLC-K508-40AT units have been discontinued and are now LTSOH (Limited to Stock on Hand). We recommend the KNC-PLC-K608-40AT as a replacement.
The PLC-K508 PLC provides special I/O functions, a CANopen master, 1 RS232 and 2 RS485 communication ports, integrated analog input and output channels and more. The high speed counters come in 12 different operation modes, support single-phase frequency up to 60 KHz and dual-phase (A/B phase) frequency up to 20 KHz. In the 12 different modes, each counter has its own inputs for clock, direction control, start and reset, and has a 32-bit present value. The built-in high-speed pulse outputs can reach a maximum frequency of 200 KHz, and support PWM. The free KincoBuilder software provides absolute and relative positioning, homing, jogging, and quick stop instructions. With multiple communication ports, the PLC-K508 series becomes an ideal hub for data processing with field devices, such as temperature modules, servo drives, field busses and more.
For Program Download:
The communication ports on the Kinco PLCs have female DB9 Connectors, which means a USB to RS-232 Converter is needed if your computer does not have a DB9 serial port. A standard RS-232 cable will not work either so it is highly recommended to purchase the KNC-CBL-MT54-KC so that you don't have to make your own cable.
- Two High-Speed Counters
- Two Pulse Train Outputs
- Relay and/or Transistor Outputs
- 24 Sinking or Sourcing Inputs
- 16 Transistor and/or Relay Outputs
- Multiple Communication Ports
- Free IDE
