KNC-PLC-K506EA-30AT

Unit Price:
$253.00
Quantity Discount
  • Buy 10 for $240.35 each and save 5%
  • Buy 25 for $225.86 each and save 11%
  • Buy 50 for $208.37 each and save 18%
  • Buy 100 for $191.70 each and save 24%
Inventory:
8
In stock
More Information
Module Type CPU
Input Points 14
Input Type Sinking or Sourcing
Output Points 10
Output Type Transistor
Rated Voltage 85-265 VAC
Analog Input 4
Analog Output 2
COM Ports Port0: RS232Port1 & Port2: RS485
Interested in large quantity discount?

Product Information

NOTE: The KNC-PLC-K506EA-30AT units have been discontinued and are now LTSOH (Limited to Stock on Hand). We recommend the KNC-PLC-K606EA-30AT as a replacement.

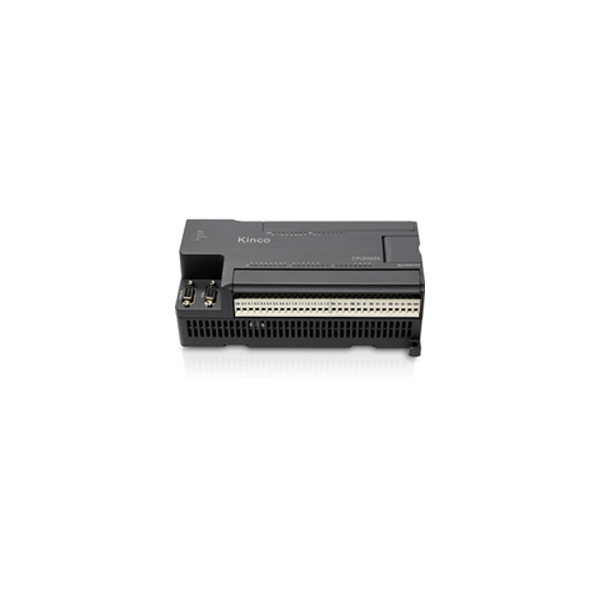

The PLC-K506 series provides special I/O functions, a CANopen master, 1 RS232 and 2 RS485 communication ports, integrated analog input and output channels and more. The high speed counters come in 12 different operation modes, support single-phase frequency up to 60 KHz and dual-phase (A/B phase) frequency up to 20 KHz. In the 12 different modes, each counter has its own inputs for clock, direction control, start and reset, and has a 32-bit present value. The built-in high-speed pulse outputs can reach a maximum frequency of 200 KHz, and support PWM. The free KincoBuilder software provides absolute and relative positioning, homing, jogging and quick stop instructions. With multiple communication ports, the PLC-K506 series becomes an ideal hub for data processing with field devices, such as temperature modules, servo drives, field busses and more. The K506EA-30AT comes integrated with 4 analog inputs and 2 analog outputs, enabling the user to control and monitor countless more devices.

For Program Download:
The communication ports on the Kinco PLCs have female DB9 Connectors, which means a USB to RS-232 Converter is needed if your computer does not have a DB9 serial port. A standard RS-232 cable will not work either so it is highly recommended to purchase the KNC-CBL-MT54-KC so that you don't have to make your own cable.

  • Two High-Speed Counters
  • Two Pulse Train Outputs
  • Integrated Analog Inputs and Outputs
  • Integrated Analog Outputs
  • Relay or Transistor Outputs
  • 14 Sinking or Sourcing Inputs
  • 10 Relay or Transistor Outputs
  • Multiple Communication Ports
  • Free IDE

.STEP File (.RAR File)

User Manual (PDF)

Spec Sheet (PDF)

Software Download

Getting Started

K5 Hardware Manual
