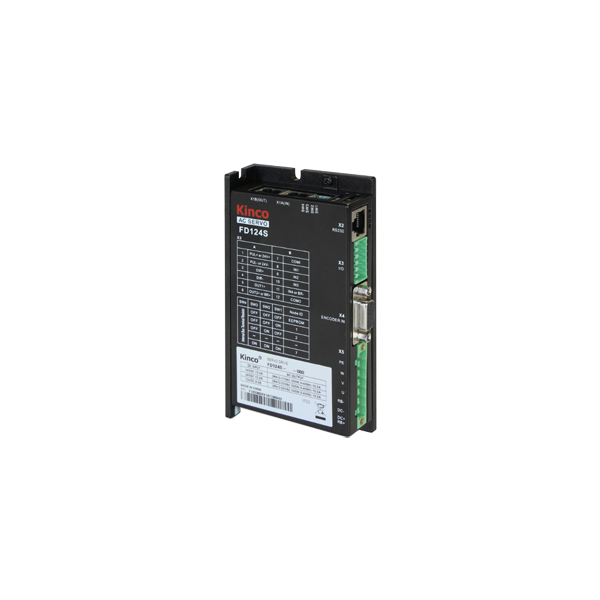

KNC-SRV-FD124S-LA-000

The KNC-SRV-FD124S-LA-000 Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this servo drive is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 200-400W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The KNC-SRV-FD124S-LA-000 Servo Drive can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. The KNC-SRV-FD124S-LA-000 Servo Drive operates with 24-70VDC input. These drives come standard with an RS232 which can be operated using MODBUS Protocol, a RS485 port, or can be operated using our Free, Easy-to-Use Software. Please consult our Application Engineers for more information.

Note: To communicate to the drives, the KNC-SRV-RS-232-RJ45 Cable is required.

• 24-70VDC
• Rated Current is 12A (RMS), Peak Current is 36A
• 200-400 Watt Power Range
• Position, Speed, and Torque Control
• RS232 and RS485 Port
• MODBUS RTU or Pulse and Direction
• Supports Incremental or 16-Bit Absolute Encoders
• Communication Software
• Configure Parameters
• I/O Signal Monitoring
• Speed and Position Curves
• Gain Adjustments
• Programmable Inputs and Outputs
• 4 Inputs (LA) or 3 Inputs (LB)
• 2 Outputs (LA has 2, LB has 1 + 1 for Brake)
• CE Certified
