KNC-SRV-FD114S-LB-000
| Rated Power (Watts) | 50-100 |
|---|---|
| Rated Voltage | 24-70 VDC |
| Drive Control Capabilities | Position, Speed, Torque |
| COMM | MODBUS |
| I/O Signals | 3 Inputs, 1 Output |
Interested in large quantity discount?
Product Information

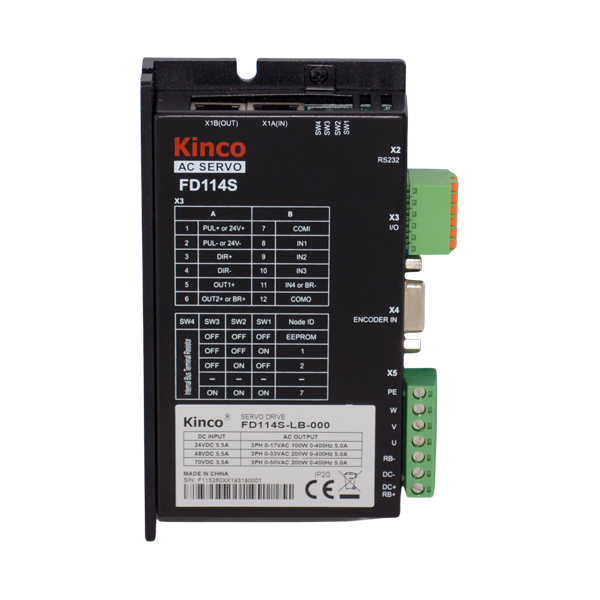

The KNC-SRV-FD114S-LB-000 Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this servo drive is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 50-100W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The KNC-SRV-FD114S-LB-000 Servo Drive can operate position control mode either with pulse and direction inputs, 8 internal position points, or 8 internal speed points. The KNC-SRV-FD114S-LB-000 Servo Drive operates with 24-70VDC input. These drives come standard with an RS232 which can be operated using MODBUS Protocol, a RS485 port, or can be operated using our Free, Easy-to-Use Software. Please consult our Application Engineers for more information.
Note: To communicate to the drives, the KNC-SRV-RS-232-RJ45 Cable is required.
- 24-70VDC
- Rated Current is (RMS) 5A
- 50-100 Watt Rated Power Range
- Position, Speed, and Torque Control
- RS232 and RS485 Port
- MODBUS RTU or Pulse and Direction
- Supports Incremental or 16-Bit Absolute Encoders
- Communication Software
- Configure Parameters
- I/O Signal Monitoring
- Speed and Position Curves
- Gain Adjustments
- Programmable Inputs and Outputs
- 3 inputs
- 2 Outputs (1 Standard & 1 for Brake)
- CE Certified
