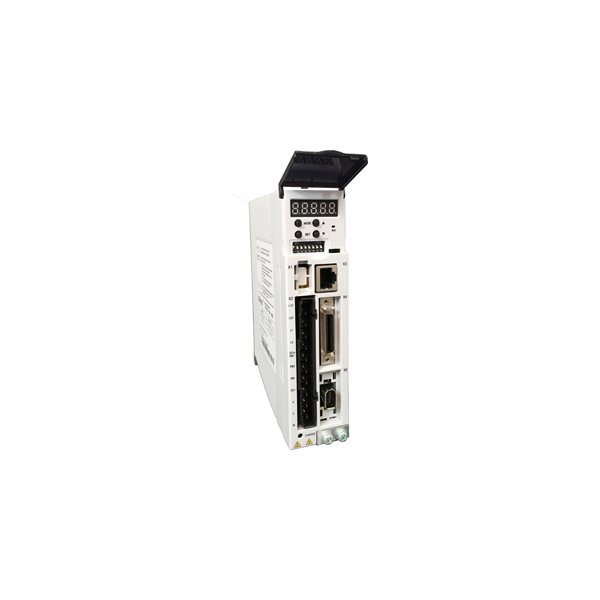

KNC-SRV-FD114S-LB-000 Kinco AC Servo Drive

KNC-SRV-FD114S-LB-000

KNC-SRV-FD423-LA-000

1pc Price:
$242.00
Quantity Discount
  • Buy 10 for $238.39 each and save 1%
  • Buy 25 for $234.31 each and save 3%
  • Buy 50 for $224.18 each and save 7%
  • Buy 100 for $214.85 each and save 11%
Inventory:
8
More Information
Rated Power (Watts) 200-750
Rated Voltage 220 VAC
Drive Control Capabilities Position, Speed, Torque
COMM MODBUS through RS485
I/O Signals 7 Inputs, 5 Outputs
Interested in large quantity discount?

Product Information

The KNC-SRV-FD423 Series Servo Drive is a great fit for applications requiring position, speed, and/or torque control methods. The uniqueness of this Servo Drive is the flexibility of using a single Servo Drive that can accommodate motors with power ratings ranging from 200-750W. Also, it is designed to switch dynamically among different control methods for more flexible operation. The KNC-SRV-FD423 Series Servo Drive can operate position control mode either with pulse and direction inputs, or 8 internal position points, analog speed control or 8 internal speed points, and analog or internal torque mode. The KNC-SRV-FD423 Series Servo Drive operates with single phase 180-264VAC input. These drives come standard with RS232, RS485 and CAN communication ports and can be operated using MODBUS Protocols or the Free, Easy-to-Use Software. A CAN BUS is an optional port that is available upon request. Please consult our Application Engineers for more information.

Note:Our KNC-SRV-FD423-LA-000 servo drives have been discontinued and are now LTSOH (Limited to Stock on Hand).

  • Power Rating of 400-750 Watts
  • 220 VAC
  • Position, Speed, and Torque Control
  • RS232 and RS485
  • Support Modbus 485, CAN and RS232 Communication Protocol
  • Rated Current 2A, Peak Current 7A
  • Supports Pulse + Direction (PLS + DIR), Forward and Reverse Pulse (CW/CCW), and A + B Phase
  • Programmable Inputs and Outputs
    • 7 Inputs
    • 4 Outputs

User Manual (PDF)

Spec Sheet (PDF)

Software Download

Getting Started
