KNC-SRV-SMC130D-0150-20AAK-4LKP
| Rated Torque (oz-in) | 1019 |
|---|---|
| Rated Power (Watts) | 1500 |
| Rated Speed (RPM) | 2000 |
| Max Speed (rpm) | 3000 |
| Rated Current (Arms) | 6.5 |
| Voltage | 220 VAC |
| Brake | No |
| Inertia (oz-in-sec2) | 0.16993 |
| Torque Constant KT (oz-in/A) | 1.17 |
| Resistance (ohms) | 1.53 |
| Inductance (mH) | 13.3 |
| Length (mm) | 159 |
| Weight (lbs) | 16.5 |
Interested in large quantity discount?
Product Information

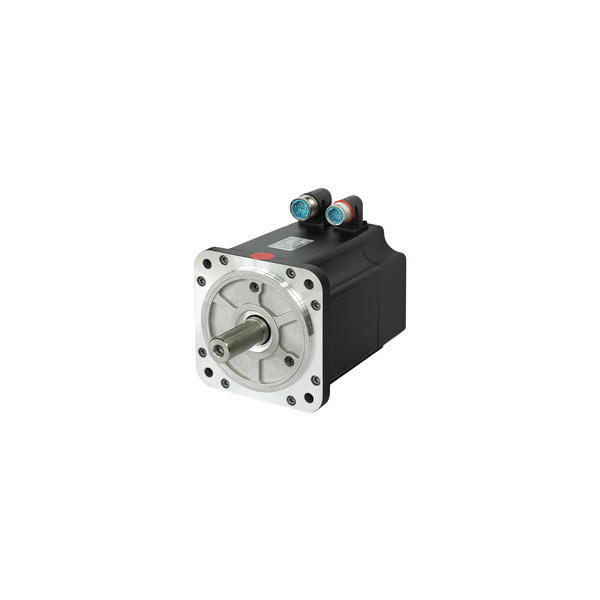

The KNC-SRV-SMC130D-0150-20AAK-4LKP Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 130mm square flange size motors boast peak torque values up to 1,770 oz-in and a rated torque of 708 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a 2,500 PPR Incremental Encoder for better cushioning ability and higher cost-performance ratio. These Servo Motors are rated for Class F Insulation, the highest insulation class available, allowing them to operate quietly, with high reliability and stability even in high-temperature environments.
- 220VAC Servo Motor
- 1500W Power Rating
- Rated Torque of 708 oz-in
- Rated Speed of 3000 RPM
- Maximum Speed of 4000 RPM
- 2500PPR Incremental Encoder
- IP65 Body, IP54 Shaft Seal
- CE Certified
.png)
.png)
.png)
.png)
