KNC-SRV-SMC130D-0150-20AAK-4LKP

KNC-SRV-SMC130D-0150-20AAK-4LKP

KNC-SRV-SMH110D-0126-20AAK-4LKC

KNC-SRV-SMH110D-0126-20AAK-4LKC

KNC-SRV-SMC130D-0150-20ABK-4LKP

1pc Price:
$742.00
Quantity Discount
  • Buy 10 for $713.36 each and save 4%
  • Buy 25 for $618.96 each and save 17%
  • Buy 50 for $582.38 each and save 22%
  • Buy 100 for $546.83 each and save 26%
Inventory:
More Information
Rated Torque (oz-in) 1019
Rated Power (Watts) 1500
Rated Speed (RPM) 2000
Max Speed (rpm) 3000
Rated Current (Arms) 6.5
Voltage 220 VAC
Brake Yes
Inertia (oz-in-sec2) 0.17135
Torque Constant KT (oz-in/A) 1.17
Resistance (ohms) 1.53
Inductance (mH) 13.3
Length (mm) 220
Weight (lbs) 21.6
Lead Time Typ 40 Days
Interested in large quantity discount?

Product Information

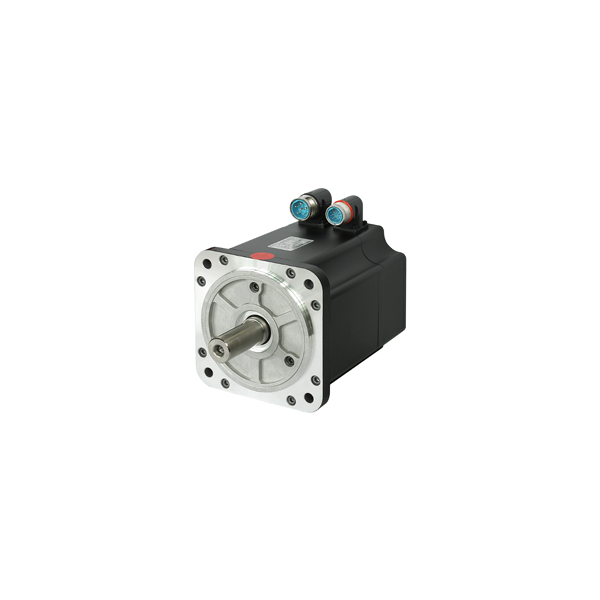

The KNC-SRV-SMC130D-0150-20ABK-4LKP Servo Motor is a low-cost solution for many motion control applications requiring a low inertia design to maximize torque at high speeds. These 130mm square flange size motors boast peak torque values up to 1,770 oz-in and a rated torque of 708 oz-in, provide excellent dynamic response, and allow for 3 times the overload capacity. They are equipped with a brake, as well as a 2,500 PPR Incremental Encoder for better cushioning ability and higher cost-performance ratio. These Servo Motors are rated for Class F Insulation, the highest insulation class available, allowing them to operate quietly, with high reliability and stability even in high-temperature environments.

  • 220VAC Servo Motor with Brake
  • 1500W Power Rating
  • Rated Torque of 708 oz-in
  • Rated Speed of 3000 RPM
  • Maximum Speed of 4000 RPM
  • 2500PPR Incremental Encoder
  • IP65 Body, IP54 Shaft Seal
  • CE Certified

User Manual (PDF)

Spec Sheet (PDF)
