Gear Ratio | 180 |
---|---|
Maximum Torque (oz-In) | 347 |
Stages | 1 |
Shaft Diameter (mm) | 8 |
Frame (mm) | 60 |
Weight (lbs) | 0.72 |

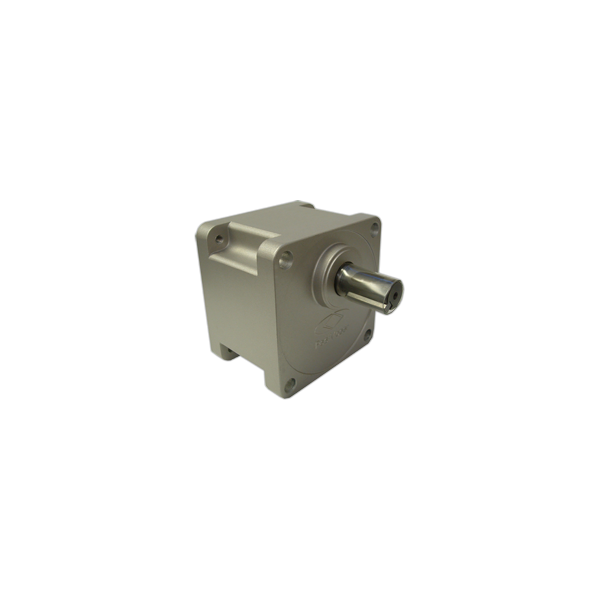

The ACP-G-2N spur gearboxes are tailored to mate with the ACP-M-2xK6N AC Induction Motors. They offer smooth and quiet operation that far exceed our competitor's standards. We offer a wide range of gear ratios to fulfill your project needs. Reduction ratios from 3.6 to 1800:1! The ACP-G-2N Gearhead series went through rigorous testing to ensure long life and maximum efficiency. These gearboxes are cost-effective solutions and are a perfect match for your motion control or automation needs.
Note: Gear ratios greater than 180 require the use of Decimal Gearhead ACP-G-2N10X-K in combination with a standard 3.6:1 - 180:1 ratio gearhead. The ACP-G-2N10X-K Decimal Gearhead will increase the paired gearhead's ratio by a factor of 10. Assembly required. Please Contact Us for assistance.
