ACP-G-2N36-K
| Gear Ratio | 36 |
|---|---|
| Maximum Torque (oz-In) | 134 |
| Stages | 1 |
| Shaft Diameter (mm) | 8 |
| Frame (mm) | 60 |
| Weight (lbs) | 0.68 |
Interested in large quantity discount?
Product Information

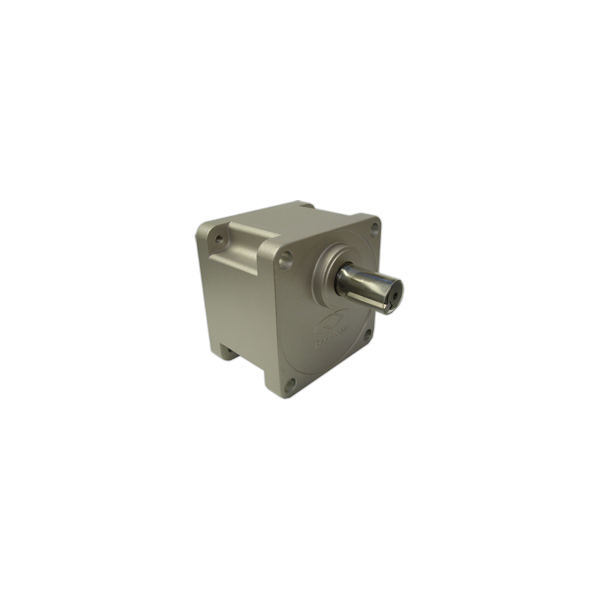

The ACP-G-2N spur gearboxes are tailored to mate with the ACP-M-2xK6N AC Induction Motors. They offer smooth and quiet operation that far exceed our competitor's standards. We offer a wide range of gear ratios to fulfill your project needs. Reduction ratios from 3.6 to 1800:1! The ACP-G-2N Gearhead series went through rigorous testing to ensure long life and maximum efficiency. These gearboxes are cost-effective solutions and are a perfect match for your motion control or automation needs.
Note: Gear ratios greater than 180 require the use of Decimal Gearhead ACP-G-2N10X-K in combination with a standard 3.6:1 - 180:1 ratio gearhead. The ACP-G-2N10X-K Decimal Gearhead will increase the paired gearhead's ratio by a factor of 10. Assembly required. Please Contact Us for assistance.
- Ball Bearings for Long Life and Quiet Operation
- MTBF - 5000 + Hours
- Gears Conform with JIS CLass-4 AGMA Class -8
- Gearboxes are Hermetically Sealed to Ensure Lubrication
- Reduction Ratios from 3.6 to 1800:1
- Precise Helical Gearsets
- Strengthened Helical Gears for Demanding Loads
- To be Mated with ACP-M-2xK6N AC Induction Motors
- Cost-Effective Solution
- Can be Customized for
- Shaft Options
- Cables and Connectors
