ACP-G-4N3.6-K

ACP-G-4N3.6-K

ACP-G-4N10-K

ACP-G-4N10-K

ACP-G-4N9-K

1pc Price:
$51.00
Quantity Discount
  • Buy 10 for $49.88 each and save 2%
  • Buy 25 for $47.44 each and save 7%
  • Buy 50 for $43.32 each and save 15%
  • Buy 100 for $38.29 each and save 25%
Inventory:
1
More Information
Gear Ratio 9
Maximum Torque (oz-In) 138
Stages 1
Shaft Diameter (mm) 10
Frame (mm) 80
Weight (lbs) 1.3
Interested in large quantity discount?

Product Information

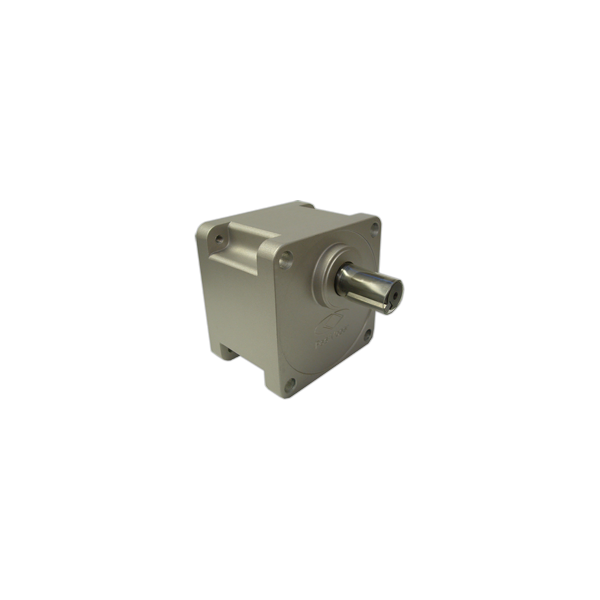

The ACP-G-4N spur gear boxes are tailored to mate with the ACP-M-4xK25N AC Induction Motors. They offer smooth and quiet operation that far exceed our competitor's standards. We offer a wide range of gear ratios to fulfill your project needs. Reduction ratios from 3.6 to 1800:1! The ACP-G-4N Gearhead series went through rigorous testing to ensure long life and maximum efficiency. These gearboxes are cost-effective solutions and are a perfect match for your motion control or automation needs.

Note: Gear ratios greater than 180 require the use of Decimal Gearhead ACP-G-4N10X-K in combination with a standard 3.6:1 - 180:1 ratio gearhead. The ACP-G-4N10X-K Decimal Gearhead will increase the paired gearhead's ratio by a factor of 10. Assembly required. Please Contact Us for assistance.

  • Ball Bearings for Long Life and Quiet Operation
  • MTBF - 5000 + Hours
  • Gears Conform with JIS Class-4 AGMA Class -8
  • Gearboxes are Hermetically Sealed to Ensure Lubrication
  • Reduction Ratios from 3.6 to 1800:1
  • Precise Helical Gearsets
  • Strengthened Helical Gears for Demanding Loads
  • To be Mated with ACP-M-4K25N AC Induction Motors
  • Cost-Effective Solution
  • Can be Customized for
    • Shaft Options
    • Cables and Connectors

3D PDF

.STEP File (.RAR File)

User Manual (PDF)
