ACP-M-3IK15N-CUV

ACP-M-3IK15N-CUV

ACP-M-4IK25N-CUV

ACP-M-4IK25N-CUV

ACP-M-4IK25N-AUV

Unit Price:
$142.00
Quantity Discount
  • Buy 10 for $130.63 each and save 8%
  • Buy 25 for $120.41 each and save 15%
  • Buy 50 for $110.72 each and save 22%
  • Buy 100 for $81.53 each and save 43%
  • Buy 250 for $77.00 each and save 46%
  • Buy 500 for $72.95 each and save 49%
  • Buy 1000 for $71.08 each and save 50%
  • Buy 2500 for $69.30 each and save 51%
Inventory:
3
In stock
More Information
Input Voltage (VAC) 110
Frequency (Hz) 60
Motor Speed (rpm) Variable
Motor Diameter (in) 3.15
Power (W) 25
Motor Length (in) 3.3
Available Motor Options F, P, S, U
Single or Three Phase Single
Interested in large quantity discount?

Product Information

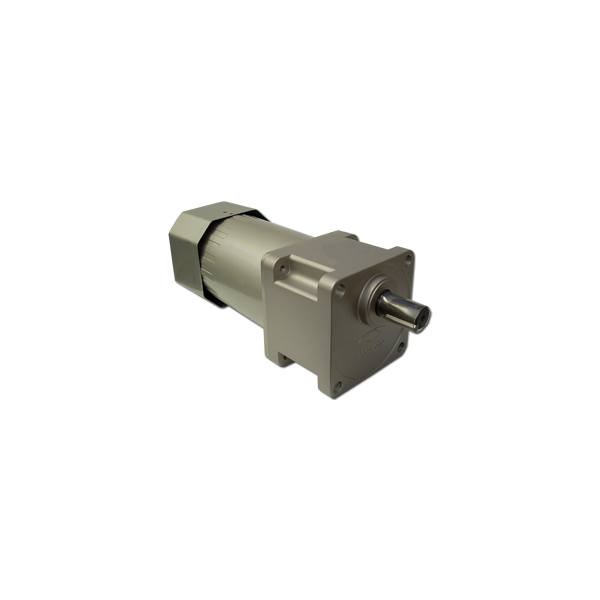

ACP-M-4IK25N-xU gearmotors provide users with a simple and cost-effective solution for constant speed applications. Our ACP-M-4IK25N-AU and ACP-M-4IK25N-CU gearmotors operate at 110/220VAC, so there is no need for a transformer; just hook up and go! Our ACP-M-4IK25N-SU three-phase AC Induction Gearmotors operate at a higher efficiency than our single-phase AC Induction Gearmotors, offer a higher starting torque, and do not require a starting capacitor. If your application requires speed control, the ACP-M-4RK25N-xUV and ACP-M-4IK25N-xUV are both excellent options and are available in 110/220VAC. The ACP-M-4RK25N-xUV variable speed motors contain an internal friction brake that allow the motor to reverse directions quicker than the standard ACP-M-4IK25N-xUV variable speed motors. This internal friction brake limits the ACP-M-4RK25N-xUV to a 30 minute duty cycle because of potential overheating issues. The Standard ACP-M-4IK25N-xUV variable speed motors do not share this same duty cycle restriction. Both of these variable speed gearmotors require an ACP-US-4I25A-xL AC Speed Controller to operate. PLEASE NOTE THAT GEARHEADS FOR THESE MOTORS ARE SOLD SEPERATELY. Please visit ACP-G-4N Gearheads for pricing and different gear ratio options.

Note: ACP-M Induction Gearmotors are LTSOH (Limited to Stock on Hand).

  • Brushless Design for Long Life and Quiet Operation
  • 110/220 VAC Input
  • Single or Three-Phase Operation
  • Rated for Continuous Operation
  • Self-Starting
  • High Starting Torque for High Inertial Loads
  • To be Mated with ACP-G-4N Gearheads
  • Direct Replacement for some Panasonic AC Induction Motors
  • Cost-Effective Solution
  • Long Life and Highly Reliable
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors
    • Clutch and/or Brake
    • Terminal Box
  • CE Certified

Single Phase Wiring

3 Phase Wiring

3D PDF

.STEP File (.RAR File)

User Manual (PDF)
