ACP-M-5IK150U-SF
| Input Voltage (VAC) | 220 |
|---|---|
| Frequency (Hz) | 60 |
| Motor Speed (rpm) | 1800 |
| Motor Diameter (in) | 3.54 |
| Power (W) | 150 |
| Motor Length (in) | 5.3 |
| Available Motor Options | F, T |
| Single or Three Phase | Three |
Interested in large quantity discount?
Product Information

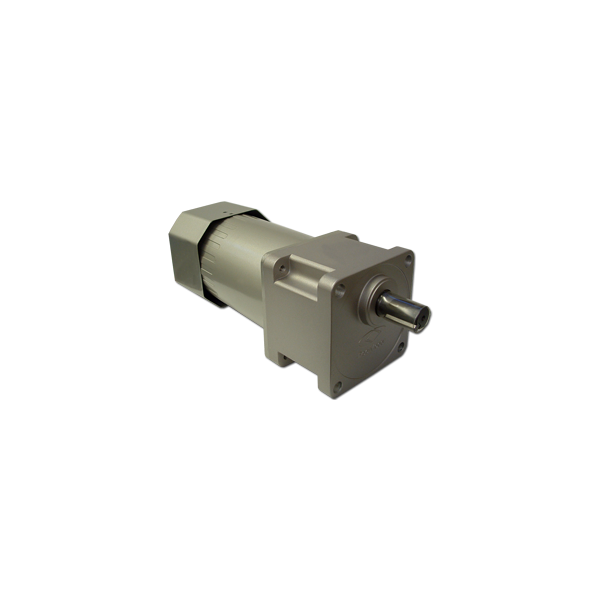

ACP-M-5IK150U-xF gearmotors provide users with a simple and cost-effective solution for constant speed applications. Our ACP-M-5IK150U-AF and ACP-M-5IK150U-CF gearmotors operate at 110/220VAC, so there is no need for a transformer; just hook up and go! Our ACP-M-5IK150U-SF three-phase AC Induction Gearmotors operate at a higher efficiency than our single-phase AC Induction Gearmotors, offer a higher starting torque, and do not require a starting capacitor. PLEASE NOTE THAT GEARHEADS FOR THESE MOTORS ARE SOLD SEPERATELY. Please visit ACP-G-5U Gearheads for pricing and different gear ratio options.
Note: ACP-M Induction Gearmotors are LTSOH (Limited to Stock on Hand).
- Brushless Design for Long Life and Quiet Operation
- 110/220 VAC Input
- Single or Three-Phase Operation
- Rated for Continuous Operation
- High Power Factor up to .8
- Self-Starting
- High Starting Torque for High Inertial Loads
- Strengthened Helical Shaft Aavailable for all Models
- To be Mated with ACP-G-5U Gearheads
- Direct Replacement for Some Panasonic AC Induction Motors
- Cost-Effective Solution
- Long Life and Highly Reliable
- Can be Customized for
- Maximum Speed
- Winding Current
- Shaft Options
- Cables and Connectors
- Clutch and/or Brake
- Terminal Box
- CE Certified
.png)
.png)
.png)
Single Phase Wiring
.png)
3 Phase Wiring
