ACP-M-5IK40N-SU

ACP-M-5IK40N-SU

ACP-M-5IK60U-SFU

ACP-M-5IK60U-SFU

ACP-M-5IK40N-AUV

1pc Price:
$150.00
Quantity Discount
  • Buy 10 for $141.40 each and save 6%
  • Buy 25 for $135.86 each and save 9%
  • Buy 50 for $134.00 each and save 11%
  • Buy 100 for $132.19 each and save 12%
Inventory:
2
More Information
Input Voltage (VAC) 110
Frequency (Hz) 60
Motor Speed (rpm) Variable
Motor Diameter (in) 3.54
Power (W) 40
Motor Length (in) 4.1
Available Motor Options F, P, S, U
Single or Three Phase Single
Interested in large quantity discount?

Product Information

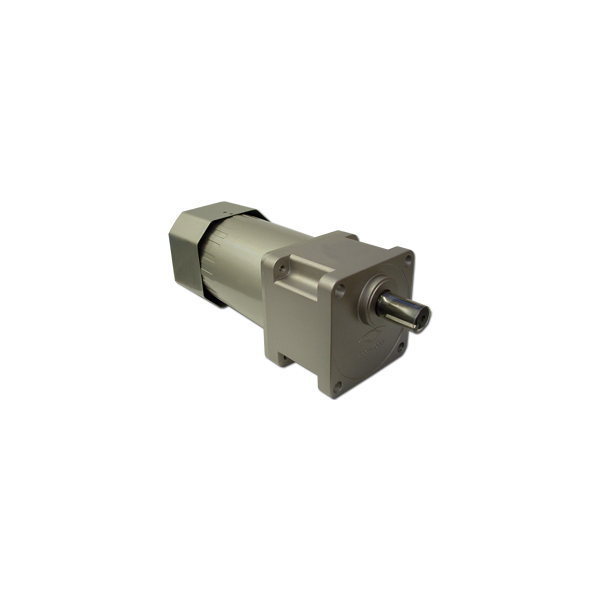

ACP-M-5IK40N-xU gearmotors provide users with a simple and cost-effective solution for constant speed applications. Our ACP-M-5IK40N-AU and ACP-M-5IK40N-CU gearmotors operate at 110/220VAC, so there is no need for a transformer; just hook up and go! Our ACP-M-5IK40N-SU three-phase AC Induction Gearmotors operate at a higher efficiency than our single-phase AC Induction Gearmotors, offer a higher starting torque, and do not require a starting capacitor. If your application requires speed control, the ACP-M-5RK40N-xUV and ACP-M-5IK40N-xUV are both excellent options and are available in 110/220VAC. The ACP-M-5RK40N-xUV variable speed motors contain an internal friction brake that allow the motor to reverse directions quicker than the standard ACP-M-5IK40N-xUV variable speed motors. This internal friction brake limits the ACP-M-5RK40N-xUV to a 30 minute duty cycle because of potential overheating issues. The Standard ACP-M-5IK40N-xUV variable speed motors do not share this same duty cycle restriction. Both of these variable speed gearmotors require an ACP-US-5I40A-xL AC Speed Controller to operate. PLEASE NOTE THAT GEARHEADS FOR THESE MOTORS ARE SOLD SEPERATELY. Please visit ACP-G-5N Gearheads for pricing and different gear ratio options.

Note: ACP-M Induction Gearmotors are LTSOH (Limited to Stock on Hand).

  • Brushless Design for Long Life and Quiet Operation
  • 110/220 VAC Input
  • Single or Three-Phase Operation
  • Rated for Continuous Operation
  • Self-Starting
  • High Starting Torque for High Inertial Loads
  • To be Mated with ACP-G-5N Gearheads
  • Direct Replacement for Some Panasonic AC Induction Motors
  • Cost-Effective Solution
  • Long Life and Highly Reliable
  • Can be Customized for
    • Maximum Speed
    • Winding Current
    • Shaft Options
    • Cables and Connectors
    • Clutch and/or Brake
    • Terminal Box
  • CE Certified

Single Phase Wiring

3 Phase Wiring

3D PDF

.STEP File (.RAR File)

User Manual (PDF)
