BDA-56C-050-90V-2500
| Volts (DC) | 90 |
|---|---|
| RPM | 2500 |
| Amps | 2.6 |
| Power (HP) | 1/2 |
| Weight (lbs) | 25 |
Interested in large quantity discount?
Product Information
Model number BDA-56C-050-90V-2500 is LTSOH (Limited to Stock on Hand).

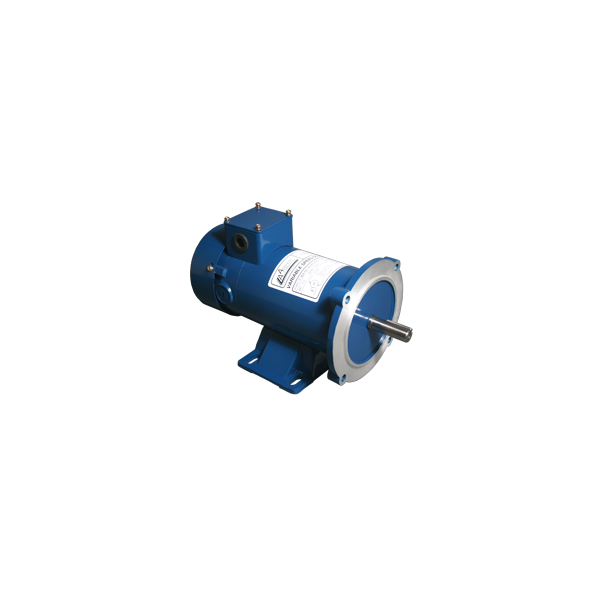

The 56C Frame DC Motors provide a cost-effective solution for your application. The BDA-56C-050 can be used anywhere from power pulleys, belts, and pumps, to water heating and other machine applications. The BDA-56C-050 has strong permanent magnets to provide the torque you need. The BDA-56C-050 1/2 HP motor can provide up to 288 oz-in of torque. Cooling vents on the motor casing are placed optimally for internal cooling of the motor.
- DC Brush Motor
- Designed for High-Torque Brush Applications
- Up to 288 oz-in of Torque
- NEMA Frame Size 56C
- Body Diameter 113mm
