BDPG-24-30-12V-6000-R720

Unit Price:
$59.00
Quantity Discount
  • Buy 10 for $50.16 each and save 15%
  • Buy 25 for $47.75 each and save 19%
  • Buy 50 for $39.05 each and save 34%
  • Buy 100 for $37.33 each and save 37%
Inventory:
10
In stock
More Information
Gear Ratio 720
Rated Torque (oz-in) 69.44
Peak Torque (oz-in) 167
No Load Speed (rpm) 8.3
Rated Speed (RPM) 6.7
Nominal Voltage (V) 12
Rated Current (A) 0.24
Output Power (W) 1.5
Body Diameter (mm) 24
Total Length (mm) 68
Gearbox Length "L" (mm) 37.5
Shaft Diameter (mm) 4
Weight (lbs) 0.28
Interested in large quantity discount?

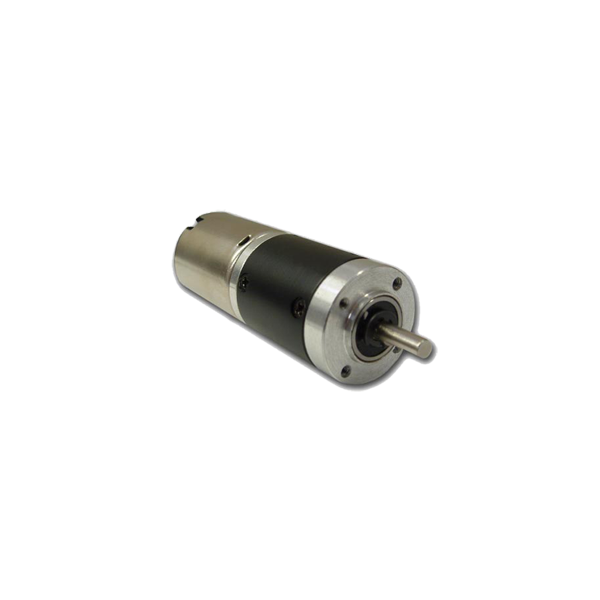

Product Information

The BDPG-24-30 Series was designed for high volume OEM applications with low cost being the primary objective. They come in variety of power levels, sizes, and will be sure to fit your Brush DC Planetary Gearmotor requirments. These motors are fully reversible. The BDPG-24-30 Series motors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Planetary Gearmotor is needed.

  • DC Brush Planetary Gearmotor
  • Designed for High-Volume Applications
  • Up to 69.44 oz-in of Continuous Torque
  • 24mm Motor Body Diameter
  • Custom Versions are Available
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

RoHS Compliant
