BDPG-38-86-12V-3000-R51
| Gear Ratio | 51 |
|---|---|
| Rated Torque (oz-in) | 249.97 |
| Peak Torque (oz-in) | 833.24 |
| No Load Speed (rpm) | 59 |
| Rated Speed (RPM) | 47 |
| Nominal Voltage (V) | 12 |
| Rated Current (A) | 1.3 |
| Output Power (W) | 10 |
| Body Diameter (mm) | 38 |
| Total Length (mm) | 132.9 |
| Gearbox Length "L" (mm) | 47.5 |
| Shaft Diameter (mm) | 8 |
| Weight (lbs) | 1.24 |
Interested in large quantity discount?
Product Information

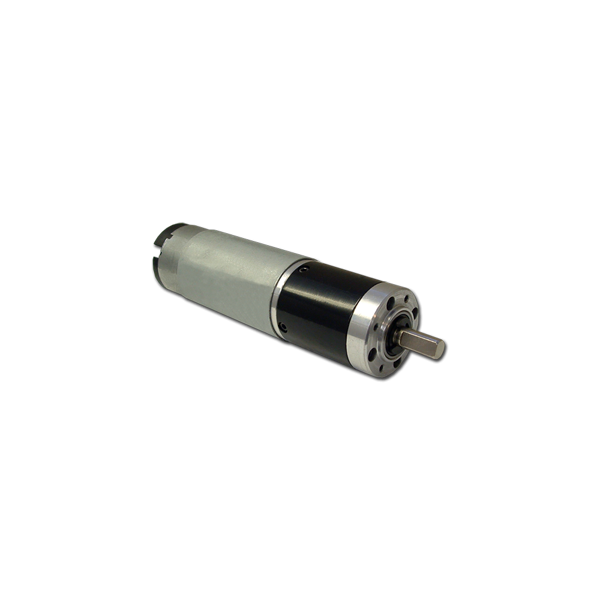

The BDPG-38-86 Series was designed for high volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Planetary Gearmotors come in variety of power levels, sizes, and will be sure to fit your needs. The motors are fully reversible. The BDPG- 38-86 Series is a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Planetary Gearmotor is needed.
- DC Brush GearMotor
- Designed for High-Volume Applications
- Up to 416.62 oz-in of Continuous Torque
- 38mm Motor Body Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
