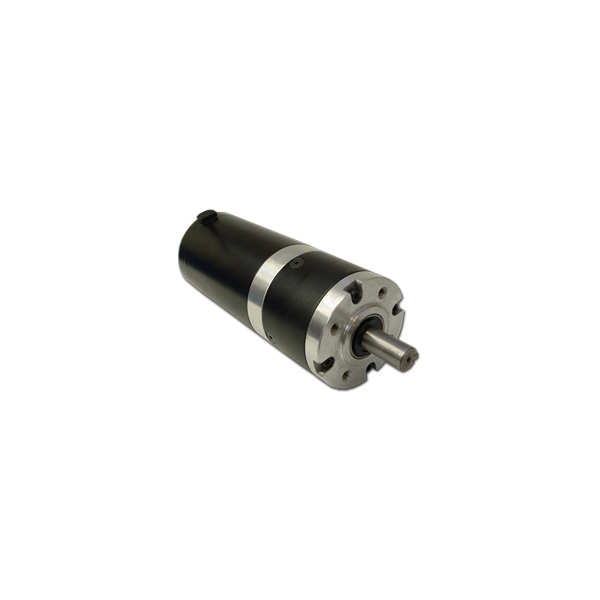

BDPG-60-110-24V-3000-R65
| Gear Ratio | 65 |
|---|---|
| Rated Torque (oz-in) | 917 |
| Peak Torque (oz-in) | 4166 |
| No Load Speed (rpm) | 46 |
| Rated Speed (RPM) | 38 |
| Nominal Voltage (V) | 24 |
| Rated Current (A) | 2.2 |
| Output Power (W) | 30 |
| Body Diameter (mm) | 60 |
| Total Length (mm) | 174 |
| Gearbox Length "L" (mm) | 64 |
| Shaft Diameter (mm) | 12 |
| Weight (lbs) | 3.88 |
Interested in large quantity discount?
Product Information
The BDPG-60-110 Series was designed for high volume OEM applications with low cost being the primary objective. These reliable low cost Brush DC Planetary Gearmotors come in variety of power levels, sizes, and will be sure to fit your needs. The motors are fully reversible. The BDPG- 60-110 Series is a cost-effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, hobby, CNC, and many other applications where a low cost Brush DC Planetary Gearmotor is needed.
- DC Brush Planetary Gearmotor
- Value Line - High-quality and a Low Price
- Up to 4166 oz-in (300 kg-cm) of Continuous Torque
- 60mm Motor Body Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
