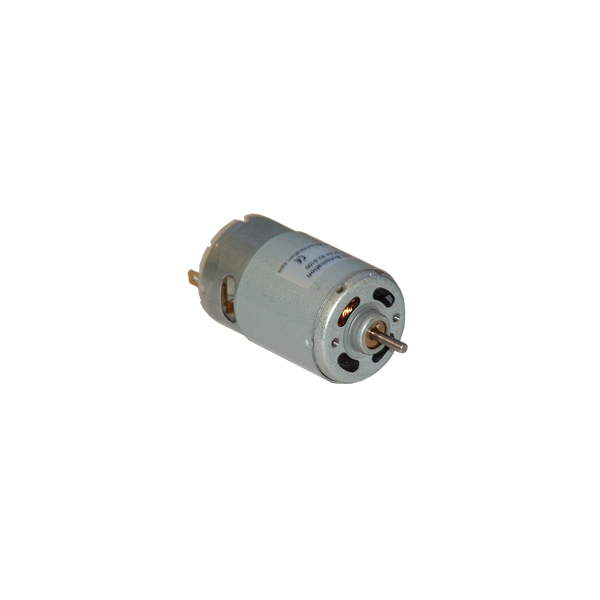

BDS-36-50-12.0V-5150
| No Load Speed (rpm) | 5150 |
|---|---|
| Rated Voltage (V) | 12 |
| No Load Current (A) | 0.2 |
| Max Eff Speed (rpm) | 4210 |
| Max Eff Current (A) | 0.89 |
| Max Eff Torque (oz-in) | 2.08 |
| Max Eff Output Watts | 6.3 |
| Body Diameter (mm) | 36 |
| Max Efficiency | 58.9 |
| Stall Torque (oz-in) | 11.11 |
| Shaft Diameter (mm) | 3.175 |
| Weight (lbs) | 0.36 |
Interested in large quantity discount?
Product Information
Anaheim Automation's DC motors provide a cost effective solution for your application. The BDS-36-50 can be used used in many applications such as robotics and medical applications. The BDS-36-50 has strong permanent magnets to provide the torque you need. The BDS-36-50 can provide up to 3.18 oz-in of torque. Cooling vents on the motor casing are placed optimally for internal cooling of the motor.
CLEARANCE SALE ITEM!: BDS-36-50-12.0V-5150 and BDS-36-50-12.0V-10000 is no longer in production and is now offered at a steep discount! Limited to stock on hand.
- DC Brush Motor
- Designed for High-Volume Applications *
- Up to 1395 g-cm of Torque
- 36 mm Diameter
- CE Certified and RoHS Compliant
.png)
.png)
.png)
