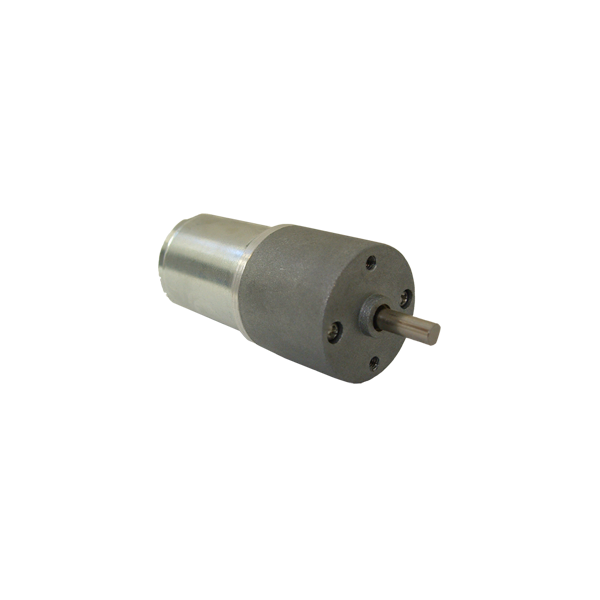

BDSG-24-30-12V-5500-R11
| Gear Ratio | 11 |
|---|---|
| Rated Torque (oz-in) | 3.06 |
| Peak Torque (oz-in) | 27.77 |
| No Load Speed (rpm) | 500 |
| Rated Speed (RPM) | 364 |
| Nominal Voltage (V) | 12 |
| Rated Current (A) | 0.22 |
| Output Power (W) | 1.2 |
| Body Diameter (mm) | 24.4 |
| Total Length (mm) | 81.8 |
| Gearbox Length "L" (mm) | 51 |
| Shaft Diameter (mm) | 3.4 |
| Weight (lbs) | 0.21 |
Interested in large quantity discount?
Product Information
The BDSG-24-30 Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 11 to 450, the BDSG-24-30 Series gearmotor offers continuous torque of up to 41.66 oz-in. These motors are fully reversible. The BDSG-24-30 Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.
*Note: Some of the motors in this series are to be discontinued and are limited to stock on hand. Contact Anaheim Automation for more details.
- DC Brush Spur Gearmotor
- Designed for High-Volume Applications
- Up to 41.66 oz-in of Continuous Torque
- 24mm Motor Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
