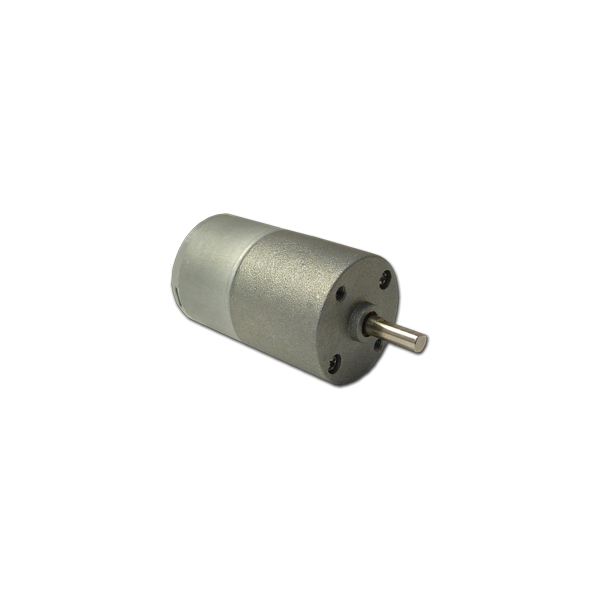

BDSG-27-20-12V-5200-R250
| Gear Ratio | 250 |
|---|---|
| Rated Torque (oz-in) | 8.61 |
| Peak Torque (oz-in) | 83.32 |
| No Load Speed (rpm) | 21 |
| Rated Speed (RPM) | 16 |
| Nominal Voltage (V) | 12 |
| Rated Current (A) | 0.07 |
| Output Power (W) | 0.24 |
| Body Diameter (mm) | 27 |
| Total Length (mm) | 46.5 |
| Gearbox Length "L" (mm) | 27 |
| Shaft Diameter (mm) | 3.4 |
| Weight (lbs) | 0.16 |
Interested in large quantity discount?
Product Information
The BDSG-27-20-12V Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 11 to 450, the BDSG-27-20-12V Series gearmotor offers continuous torque of up to 15.55 oz-in. These motors are fully reversible. The BDSG-27-20-12V Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.
*Note: Some of the motors in this series are to be discontinued and are limited to stock on hand. Contact Anaheim Automation for more details.
- DC Brush Spur Gearmotor
- Designed for High-Volume Applications
- Up to 15.55 oz-in of Continuous Torque
- 27mm Motor Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
