BDSG-27-20-12V-5200-R11

BDSG-27-20-12V-5200-R11

BDSG-27-20-12V-5200-R81

BDSG-27-20-12V-5200-R81

BDSG-27-20-12V-5200-R52

Unit Price:
$65.00
Quantity Discount
  • Buy 10 for $54.74 each and save 16%
  • Buy 25 for $52.00 each and save 20%
  • Buy 50 for $35.09 each and save 46%
  • Buy 100 for $33.49 each and save 48%
Inventory:
7
In stock
More Information
Gear Ratio 52
Rated Torque (oz-in) 2.36
Peak Torque (oz-in) 17.33
No Load Speed (rpm) 100
Rated Speed (RPM) 75
Nominal Voltage (V) 12
Rated Current (A) 0.07
Output Power (W) 0.24
Body Diameter (mm) 27
Total Length (mm) 42.5
Gearbox Length "L" (mm) 23
Shaft Diameter (mm) 3.4
Weight (lbs) 0.16
Interested in large quantity discount?

Product Information

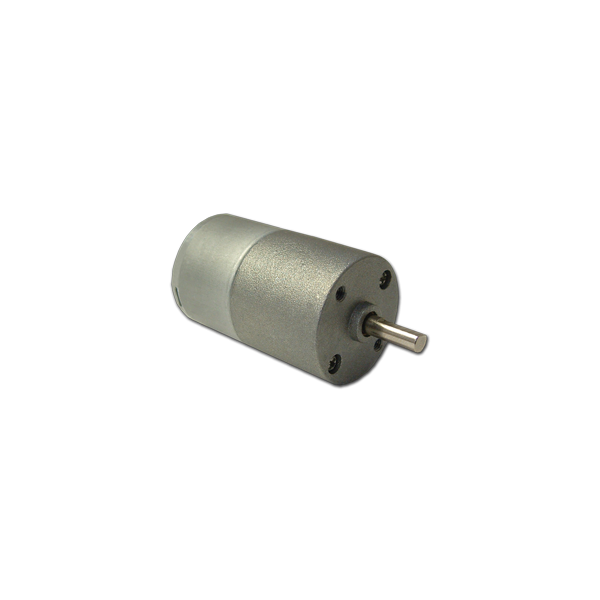

The BDSG-27-20-12V Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 11 to 450, the BDSG-27-20-12V Series gearmotor offers continuous torque of up to 15.55 oz-in. These motors are fully reversible. The BDSG-27-20-12V Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.

*Note: Some of the motors in this series are to be discontinued and are limited to stock on hand. Contact Anaheim Automation for more details.

  • DC Brush Spur Gearmotor
  • Designed for High-Volume Applications
  • Up to 15.55 oz-in of Continuous Torque
  • 27mm Motor Diameter
  • Custom Versions are Available
  • CE Certified and RoHS Compliant

Spec Sheet (PDF)

RoHS Compliant
