BDSG-37-30-12V-5000-R100

BDSG-37-30-12V-5000-R100

BDSG-37-30-12V-5000-R200

BDSG-37-30-12V-5000-R200

BDSG-37-30-12V-5000-R150

Unit Price:
$39.00
Quantity Discount
  • Buy 10 for $32.31 each and save 17%
  • Buy 25 for $30.70 each and save 21%
  • Buy 50 for $25.06 each and save 36%
  • Buy 100 for $23.92 each and save 39%
Inventory:
6
In stock
More Information
Gear Ratio 150
Rated Torque (oz-in) 48.61
Peak Torque (oz-in) 249.97
No Load Speed (rpm) 33
Rated Speed (RPM) 28
Nominal Voltage (V) 24
Rated Current (A) 0.33
Output Power (W) 1.8
Body Diameter (mm) 37
Total Length (mm) 58
Gearbox Length "L" (mm) 26.5
Shaft Diameter (mm) 6
Weight (lbs) 0.38
Interested in large quantity discount?

Product Information

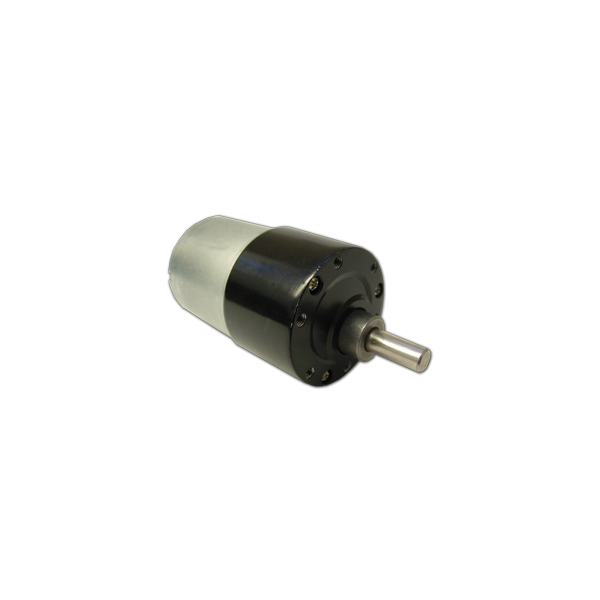

The BDSG-37-24 Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 6 to 1000, the BDSG-37-24 Series gearmotor offer continous torque of up to 83 oz-in. These motors are fully reverisble. The BDSG-37-24 Series gearmotors are a cost effective solution to manage motion control in many rotary application including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost brush DC Spur gearmotor in needed.

  • DC Brush Spur Gearmotor
  • Designed for High Volume Applications
  • Up to 250 oz-in (18 kg-cm) of Peak Torque
  • Up to 83 oz-in (6 kg-cm) of Continuous Torque
  • 37 mm Motor Body Diameter
  • Custom Versions are Available

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

RoHS Compliant
