BDSG-37-40-06V-5000-R150

BDSG-37-40-06V-5000-R150

BDSG-37-40-06V-5000-R250

BDSG-37-40-06V-5000-R250

BDSG-37-40-06V-5000-R200

Unit Price:
Inventory:
0
Out of Stock
More Information
Gear Ratio 200
Rated Torque (oz-in) 83
Peak Torque (oz-in) 250
No Load Speed (rpm) 25
Rated Speed (RPM) 21
Nominal Voltage (V) 24
Rated Current (A) 0.8
Output Power (W) 4.2
Body Diameter (mm) 37
Total Length (mm) 66.5
Gearbox Length "L" (mm) 26.5
Shaft Diameter (mm) 5.5
Weight (lbs) 0.49
Interested in large quantity discount?

Product Information

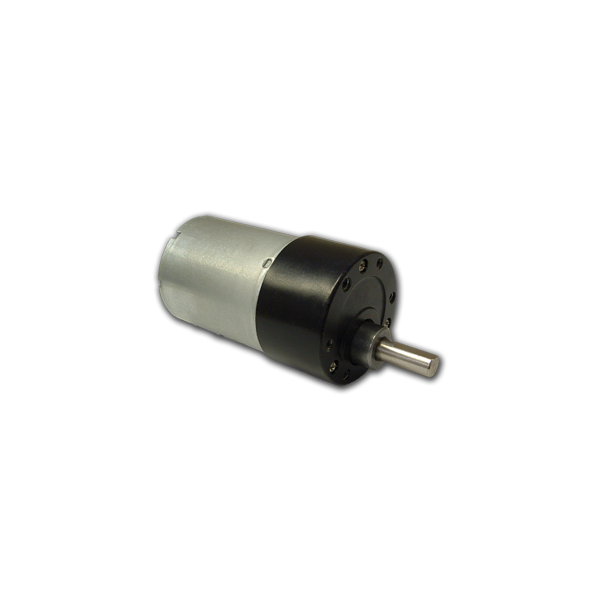

The BDSG-37-40-6V Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 6 to 300, the BDSG-37-40-6V Series gearmotor offers continuous torque of up to 83 oz-in. These motors are fully reversible. The BDSG-37-40-6V Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.

  • DC Brush Gearmotor
  • Designed for High-Volume Applications
  • Up to 83 oz-in (6 kg-cm) of Continuous Torque
  • 37mm Motor Diameter
  • Custom Versions are Available
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

RoHS Compliant
