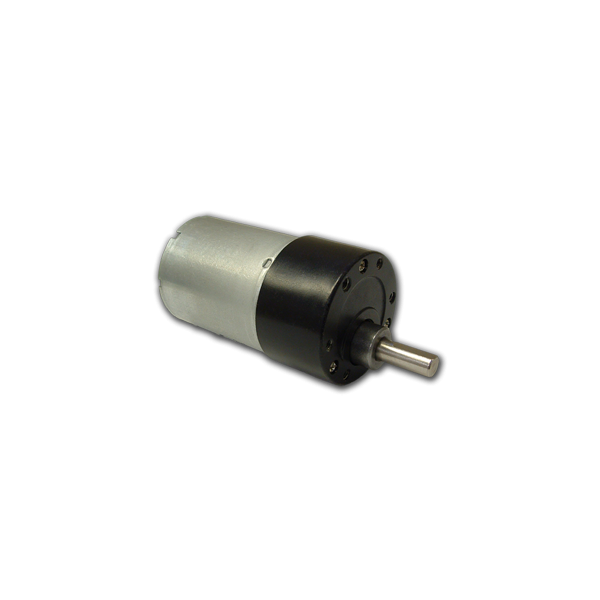

BDSG-37-40-06V-5000-R300
| Gear Ratio | 300 |
|---|---|
| Rated Torque (oz-in) | 83 |
| Peak Torque (oz-in) | 250 |
| No Load Speed (rpm) | 17 |
| Rated Speed (RPM) | 14 |
| Nominal Voltage (V) | 6 |
| Rated Current (A) | 0.8 |
| Output Power (W) | 4.2 |
| Body Diameter (mm) | 37 |
| Total Length (mm) | 66.5 |
| Gearbox Length "L" (mm) | 26.5 |
| Shaft Diameter (mm) | 6 |
| Weight (lbs) | 0.49 |
Interested in large quantity discount?
Product Information
The BDSG-37-40-6V Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 6 to 300, the BDSG-37-40-6V Series gearmotor offers continuous torque of up to 83 oz-in. These motors are fully reversible. The BDSG-37-40-6V Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.
- DC Brush Gearmotor
- Designed for High-Volume Applications
- Up to 83 oz-in (6 kg-cm) of Continuous Torque
- 37mm Motor Diameter
- Custom Versions are Available
- RoHS Compliant
