BDSG-37-30-24V-5000-R3000

BDSG-37-30-24V-5000-R3000

BDSG-37-40-06V-5000-R10

BDSG-37-40-06V-5000-R10

BDSG-37-40-06V-5000-R6

1pc Price:
$28.00
Inventory:
6
More Information
Gear Ratio 6
Rated Torque (oz-in) 4
Peak Torque (oz-in) 42
No Load Speed (rpm) 833
Rated Speed (RPM) 717
Nominal Voltage (V) 6
Rated Current (A) 0.8
Output Power (W) 4.2
Body Diameter (mm) 37
Total Length (mm) 59
Gearbox Length "L" (mm) 19
Shaft Diameter (mm) 6
Weight (lbs) 0.44
Interested in large quantity discount?

Product Information

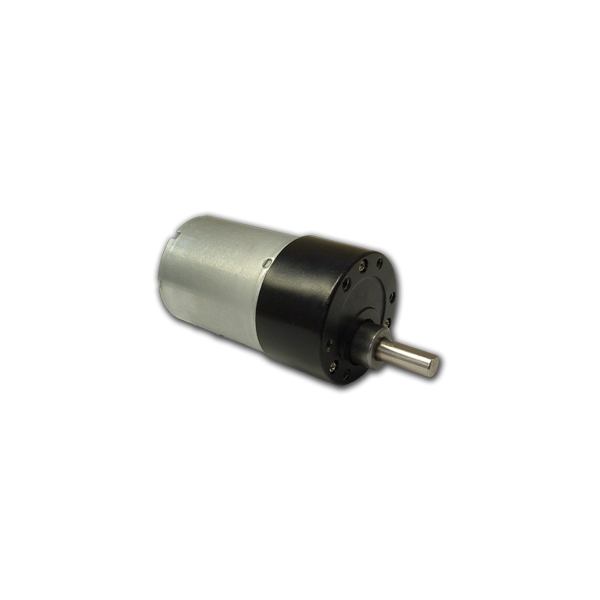

The BDSG-37-40-6V Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 6 to 300, the BDSG-37-40-6V Series gearmotor offers continuous torque of up to 83 oz-in. These motors are fully reversible. The BDSG-37-40-6V Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.

  • DC Brush Gearmotor
  • Designed for High-Volume Applications
  • Up to 83 oz-in (6 kg-cm) of Continuous Torque
  • 37mm Motor Diameter
  • Custom Versions are Available
  • RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

RoHS Compliant
