BDSG-37-40-06V-5000-R50

BDSG-37-40-06V-5000-R50

BDSG-37-40-06V-5000-R100

BDSG-37-40-06V-5000-R100

BDSG-37-40-06V-5000-R75

1pc Price:
$30.00
Quantity Discount
  • Buy 10 for $28.65 each and save 5%
  • Buy 25 for $27.81 each and save 7%
  • Buy 50 for $23.49 each and save 22%
  • Buy 100 for $23.15 each and save 23%
Inventory:
6
More Information
Gear Ratio 75
Rated Torque (oz-in) 54
Peak Torque (oz-in) 167
No Load Speed (rpm) 67
Rated Speed (RPM) 57
Nominal Voltage (V) 6
Rated Current (A) 0.8
Output Power (W) 4.2
Body Diameter (mm) 37
Total Length (mm) 64
Gearbox Length "L" (mm) 24
Shaft Diameter (mm) 6
Weight (lbs) 0.48
Interested in large quantity discount?

Product Information

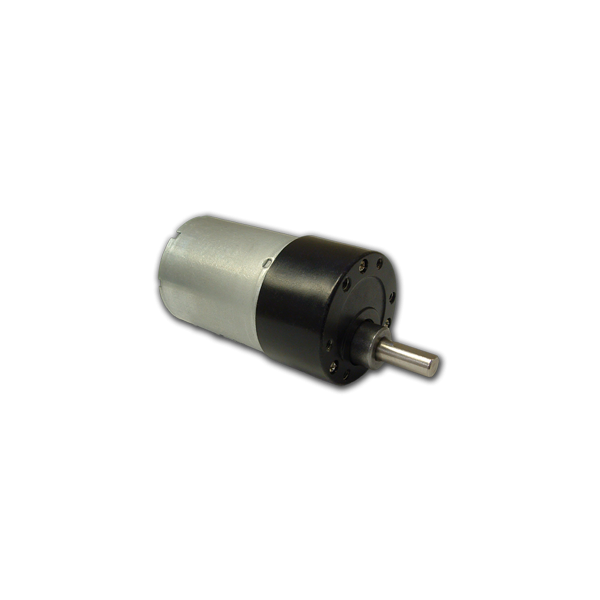

The BDSG-37-40-6V Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 6 to 300, the BDSG-37-40-6V Series gearmotor offers continuous torque of up to 83 oz-in. These motors are fully reversible. The BDSG-37-40-6V Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.

  • DC Brush Gearmotor
  • Designed for High-Volume Applications
  • Up to 83 oz-in (6 kg-cm) of Continuous Torque
  • 37mm Motor Diameter
  • Custom Versions are Available
  • RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

RoHS Compliant
