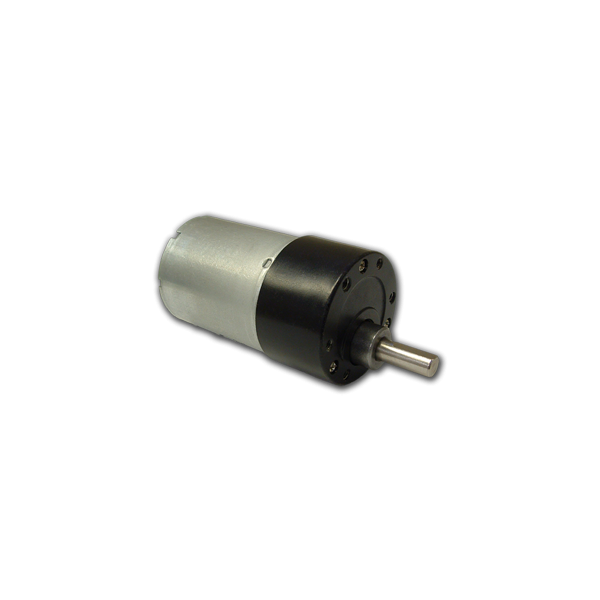

BDSG-37-40-12V-5000-R100
| Gear Ratio | 100 |
|---|---|
| Rated Torque (oz-in) | 72 |
| Peak Torque (oz-in) | 167 |
| No Load Speed (rpm) | 50 |
| Rated Speed (RPM) | 43 |
| Nominal Voltage (V) | 24 |
| Rated Current (A) | 0.57 |
| Output Power (W) | 4.2 |
| Body Diameter (mm) | 37 |
| Total Length (mm) | 64 |
| Gearbox Length "L" (mm) | 24 |
| Shaft Diameter (mm) | 5.5 |
| Weight (lbs) | 0.48 |
Interested in large quantity discount?
Product Information
- DC Brush Gearmotor
- Designed for High-Volume Applications
- Up to 250 oz-in (18 kg-cm) of Peak Torque
- Up to 83 oz-in (6 kg-cm) of Continuous Torque
- 37mm Motor Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
