BDSG-37-40-24V-5000-R75

Unit Price:
Inventory:
0
Out of Stock
More Information
Gear Ratio 75
Rated Torque (oz-in) 54
Peak Torque (oz-in) 167
No Load Speed (rpm) 65
Rated Speed (RPM) 48
Nominal Voltage (V) 24
Rated Current (A) 0.38
Output Power (W) 3.7
Body Diameter (mm) 37
Total Length (mm) 64
Gearbox Length "L" (mm) 24
Shaft Diameter (mm) 5.5
Weight (lbs) 0.48
Interested in large quantity discount?

Product Information

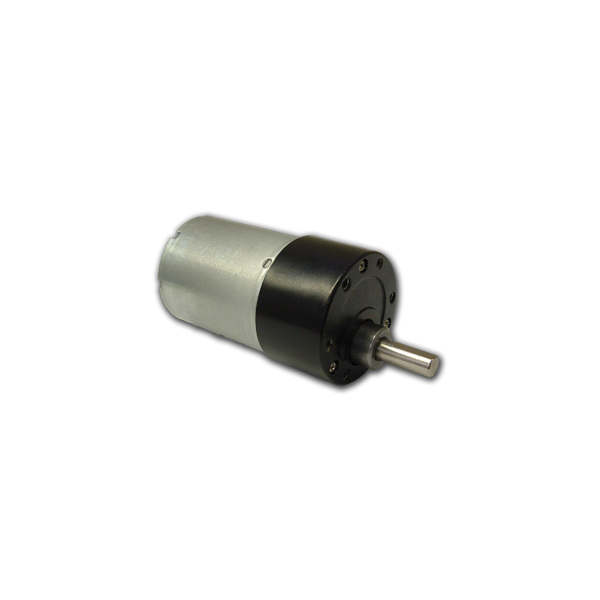

  • DC Brush Gearmotor
  • Designed for High-Volume Applications
  • Up to 250 oz-in (18 kg-cm) of Peak Torque
  • Up to 83 oz-in (6 kg-cm) of Continuous Torque
  • 37mm Motor Diameter
  • Custom Versions are Available
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

RoHS Compliant
