BDSG-37-57-24V-4200-R50

BDSG-37-57-24V-4200-R50

BDSG-37-57-24V-4200-R100

BDSG-37-57-24V-4200-R100

BDSG-37-57-24V-4200-R75

1pc Price:
$36.00
Inventory:
7
More Information
Gear Ratio 75
Rated Torque (oz-in) 83.32
Peak Torque (oz-in) 166.65
No Load Speed (rpm) 56
Rated Speed (RPM) 51
Nominal Voltage (V) 24
Rated Current (A) 1
Output Power (W) 7
Body Diameter (mm) 37
Total Length (mm) 57
Gearbox Length "L" (mm) 29
Shaft Diameter (mm) 6
Weight (lbs) 0.61
Interested in large quantity discount?

Product Information

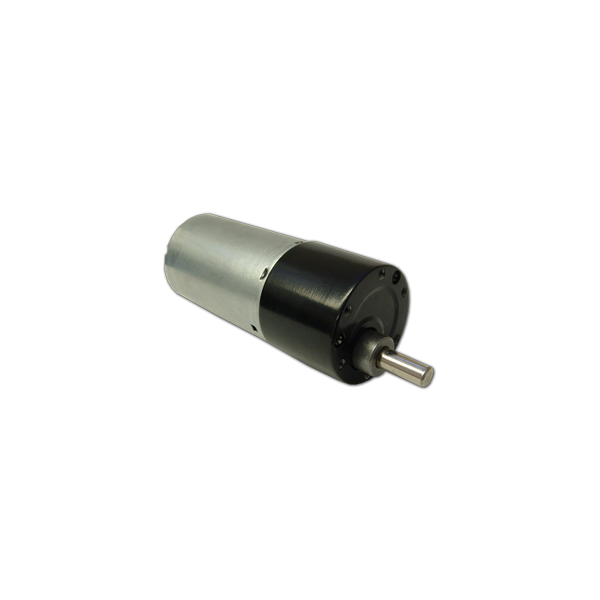

  • DC Brush Gearmotor
  • Designed for High-Volume Applications
  • Up to 166 oz-in (12 kg-cm) of Peak Torque
  • Up to 83 oz-in (6 kg-cm) of Continuous Torque
  • 37mm Motor Diameter
  • Custom Versions are Available
  • RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

RoHS Compliant
