BDSG-60-105-24V-1900-R12.5

BDSG-60-105-24V-1900-R12.5

BDSG-60-105-24V-1900-R25

BDSG-60-105-24V-1900-R25

BDSG-60-105-24V-1900-R15

Unit Price:
Inventory:
0
Out of Stock
More Information
Gear Ratio 15
Rated Torque (oz-in) 183
Peak Torque (oz-in) 694
No Load Speed (rpm) 126
Rated Speed (RPM) 83
Nominal Voltage (V) 24
Rated Current (A) 1.6
Output Power (W) 15
Body Diameter (mm) 60
Total Length (mm) 149
Gearbox Length "L" (mm) 42
Shaft Diameter (mm) 8
Weight (lbs) 2.6
Interested in large quantity discount?

Product Information

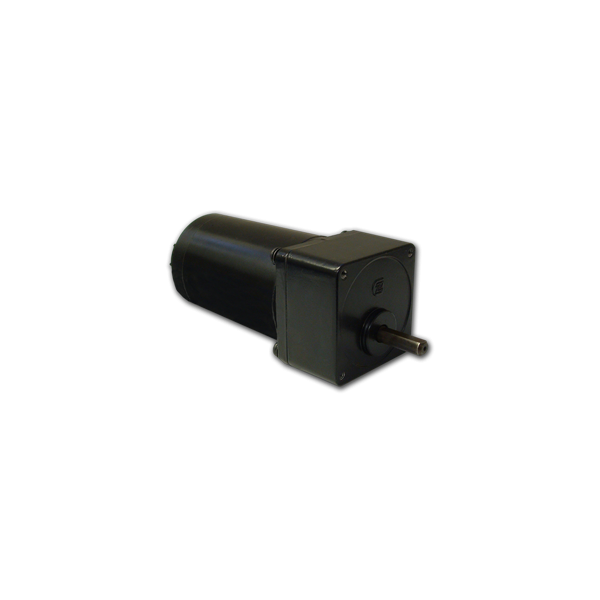

The BDSG-60-105 Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 3 to 150, the BDSG-60-105 Series gearmotor offers continuous torque of up to 347.18 oz-in. These motors are fully reversible. The BDSG-60- 105 Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.

  • DC Brush Gearmotor
  • Designed for High-Volume Applications
  • Up to 166 oz-in (12 kg-cm) of Peak Torque
  • Up to 83 oz-in (6 kg-cm) of Continuous Torque
  • 37mm Motor Diameter
  • Custom Versions are Available
  • CE Certified and RoHS Compliant

3D PDF

.STEP File (.RAR File)

Spec Sheet (PDF)

CE Certified

RoHS Compliant
