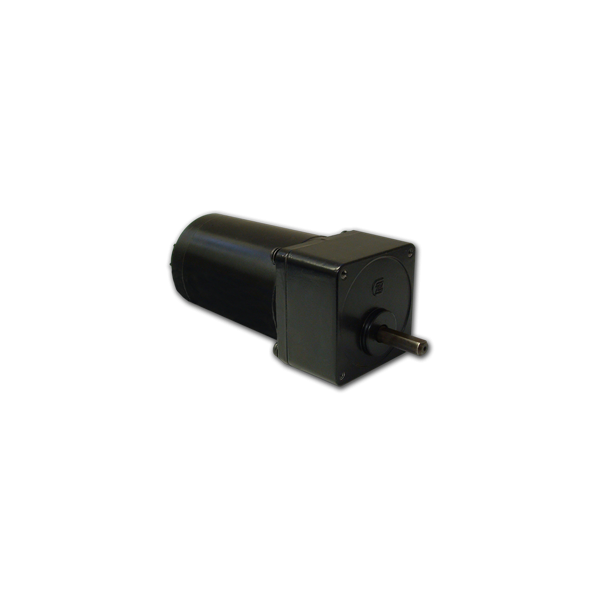

BDSG-60-105-24V-1900-R7.5
| Gear Ratio | 7.5 |
|---|---|
| Rated Torque (oz-in) | 101 |
| Peak Torque (oz-in) | 417 |
| No Load Speed (rpm) | 253 |
| Rated Speed (RPM) | 166 |
| Nominal Voltage (V) | 24 |
| Rated Current (A) | 1.6 |
| Output Power (W) | 15 |
| Body Diameter (mm) | 60 |
| Total Length (mm) | 139 |
| Gearbox Length "L" (mm) | 32 |
| Shaft Diameter (mm) | 8 |
| Weight (lbs) | 2.58 |
Interested in large quantity discount?
Product Information
The BDSG-60-105 Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 3 to 150, the BDSG-60-105 Series gearmotor offers continuous torque of up to 347.18 oz-in. These motors are fully reversible. The BDSG-60- 105 Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.
- DC Brush Gearmotor
- Designed for High-Volume Applications
- Up to 166 oz-in (12 kg-cm) of Peak Torque
- Up to 83 oz-in (6 kg-cm) of Continuous Torque
- 37mm Motor Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
