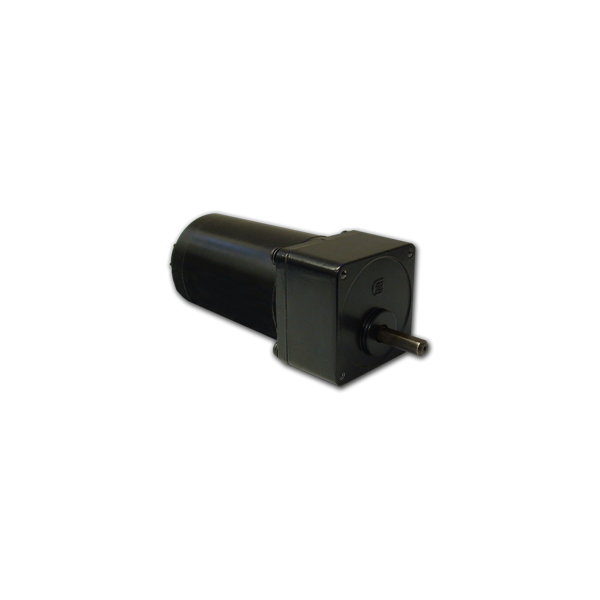

BDSG-60-75-24V-3000-R10
| Gear Ratio | 10 |
|---|---|
| Rated Torque (oz-in) | 44 |
| Peak Torque (oz-in) | 361 |
| No Load Speed (rpm) | 300 |
| Rated Speed (RPM) | 250 |
| Nominal Voltage (V) | 24 |
| Rated Current (A) | 1.1 |
| Output Power (W) | 10 |
| Body Diameter (mm) | 60 |
| Total Length (mm) | 76 |
| Gearbox Length "L" (mm) | 32 |
| Shaft Diameter (mm) | 8 |
| Weight (lbs) | 1.9 |
Interested in large quantity discount?
Product Information
The BDSG-60-75 Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 3 to 75, the BDSG-60-75 Series gearmotor offers continuous torque of up to 275 oz-in. These motors are fully reversible. The BDSG-60-75 Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.
- DC Brush GearMotor
- Designed for High-Volume Applications
- Up to 275 oz-in of Rated Torque
- Up to 1389 oz-in of Peak Torque
- 60 mm motor body diameter
