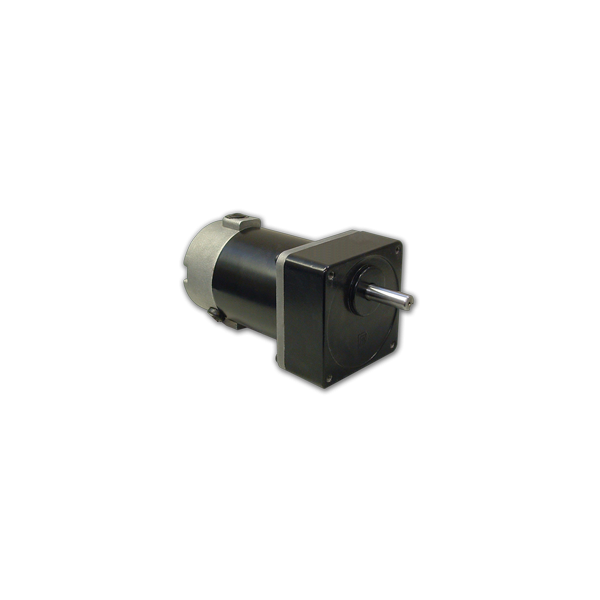

BDSG-71-110-24V-3000-R12.5
| Gear Ratio | 12.5 |
|---|---|
| Rated Torque (oz-in) | 333 |
| Peak Torque (oz-in) | 649 |
| No Load Speed (rpm) | 240 |
| Rated Speed (RPM) | 192 |
| Nominal Voltage (V) | 24 |
| Rated Current (A) | 3.5 |
| Output Power (W) | 59 |
| Body Diameter (mm) | 71 |
| Total Length (mm) | 142 |
| Gearbox Length "L" (mm) | 32 |
| Shaft Diameter (mm) | 10 |
| Weight (lbs) | 3.52 |
Interested in large quantity discount?
Product Information
The BDSG-71-110 Series was designed for high volume OEM applications with low cost being the primary objective. Available in gear ratios from 3 to 75, the BDSG-71-110 Series gearmotor offers continuous torque of up to 1389 oz-in. These motors are fully reversible. The BDSG-71-110 Series gearmotors are a cost effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed.
Note: BDSG-71-110 are LTSOH (Limited to Stock on Hand).
- DC Brush Spur GearMotor
- Designed for High-Volume Applications
- Up to 1389 oz-in of Continuous Torque
- 71mm Motor Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
