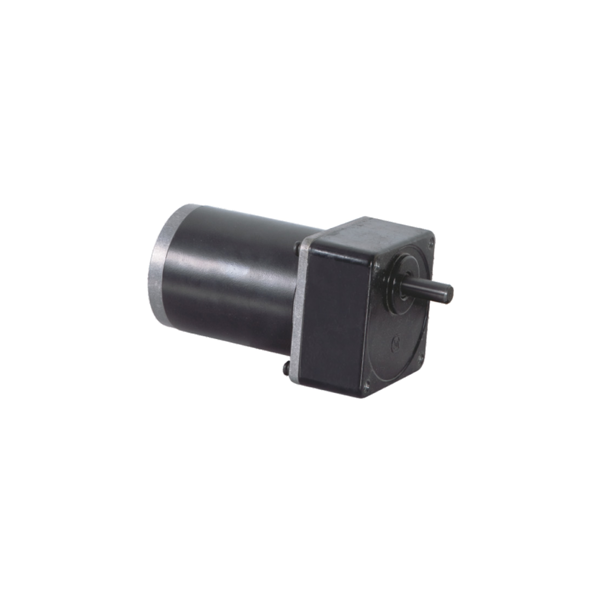

BDSG-80-115-24V-3000-R75
| Gear Ratio | 75 |
|---|---|
| Rated Torque (oz-in) | 2278 |
| Peak Torque (oz-in) | 3472 |
| No Load Speed (rpm) | 40 |
| Rated Speed (RPM) | 35 |
| Nominal Voltage (V) | 24 |
| Rated Current (A) | 4.6 |
| Output Power (W) | 77 |
| Body Diameter (mm) | 80 |
| Total Length (mm) | 185 |
| Gearbox Length "L" (mm) | 60 |
| Shaft Diameter (mm) | 15 |
| Weight (lbs) | 6.2 |
Interested in large quantity discount?
Product Information
The BDSG-80-115 Series was designed for high-volume OEM applications with low cost being the primary objective. Available in seventeen gear ratios from 3 to 75, the BDSG-80-115 Series gearmotor offers continuous torque of up to 2,407 oz-in. These motors are fully reversible. The BDSG-80-115 Series gearmotors are a cost-effective solution to manage motion control in many rotary applications including medical, semiconductor, pumps, robotics, CNC, or any other situation when a low cost Brush DC Spur gearmotor is needed. BDSG-80-115 gearmotors are also available with 12V rated voltage, and 2000 RPM no load speed before gear.
- DC Brush Spur Gearmotor
- Designed for High Volume Applications
- Up to 2407 oz-in of Continuous Torque
- 80mm Motor Diameter
- Custom Versions are Available
- CE Certified and RoHS Compliant
